ProJet MJP 2500W Printer Overview
- Build Volume294 × 211 × 144 mm (11.6 × 8.3 × 5.6 in)
- Layer Resolution2900 × 2900 × 1700 DPI; layer thickness 16 µm
- Dimensional Accuracy±0.04 mm per 20 mm
The 3D Systems ProJet MJP 2500W (and its upgraded Plus version) is a professional-grade 3D printer specifically engineered to produce high-precision, 100% wax patterns for lost-wax investment casting. It is primarily used in the jewelry and high-detail industrial casting sectors to replace traditional, time-consuming manual tooling.

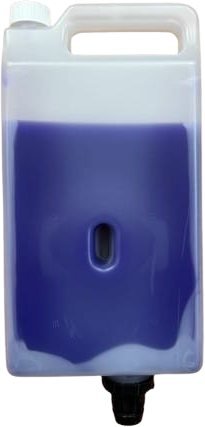

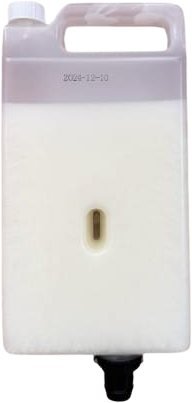

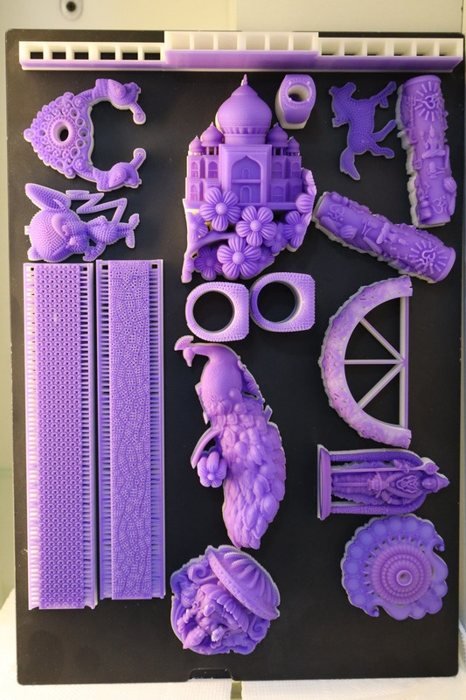

Sample Prints & Materials
Hardware Specifications
| Specification | Details |
|---|---|
| Dimensions (WxDxH) 3D Printer Crated3D Printer Uncrated | 1397 x 927 x 1314 mm (55 x 36.5 x 51.7 in)1120 x 1070 mm (44.1 x 29.1 x 42.1 in) |
| 3D Printer Crated3D Printer Uncrated | 325 kg (716 lb)211 kg (465 lb) |
| Electrical | 100-127 VAC, 50/60 Hz, single-phase, 15A200-240 50 Hz, single-phase, 10ASingle C14 receptacle |
| Operating Temperature Range | 18-28C (64-82F), reduced print speed at > (770F) |
| Operating Humidity | 30-70% relative humidity |
| Noise | < 65 dBa estimated (at medium fan setting) |
| Certifications | CE |
Printing Specifications
| Specification | Details |
|---|---|
| Net Build Volume (xyz) | 294 x 211 x 144 mm (11.6 x 8.3 x 5.6 in) |
| Accuracy (typical)2 | ±0.0508 mm/25.4 mm (±0.002 Win) of part dimensiontypical for any single printer±0.1016 mm/25.4 mm (±0.004 in/in) of partDimension across printer population |
Related Products
ProJet MJP 2500W Printer FAQs
The 3D Systems ProJet MJP 2500W (and its upgraded Plus version) is a professional-grade 3D printer specifically engineered to produce high-precision, 100% wax patterns for lost-wax investment casting. The ProJet MJP 2500W Printer is part of our Jewellery 3D Printer range.
Key specifications of the ProJet MJP 2500W Printer: Dimensions (WxDxH) 3D Printer Crated3D Printer Uncrated: 1397 x 927 x 1314 mm (55 x 36.5 x 51.7 in)1120 x 1070 mm (44.1 x 29.1 x 42.1 in); 3D Printer Crated3D Printer Uncrated: 325 kg (716 lb)211 kg (465 lb); Electrical: 100-127 VAC, 50/60 Hz, single-phase, 15A200-240 50 Hz, single-phase, 10ASingle C14 receptacle; Operating Temperature Range: 18-28C (64-82F), reduced print speed at > (770F); Operating Humidity: 30-70% relative humidity. The full specification table is shown above on this page.
The ProJet MJP 2500W Printer price depends on the configuration you choose and current rates. For an up-to-date quote, call or WhatsApp +91 9130528227, or send an enquiry using the form below, where the ProJet MJP 2500W Printer is already selected.
You can buy the ProJet MJP 2500W Printer directly from AS Technology. We supply customers across India from our Mumbai head office and branch offices in Delhi, Bengaluru, Hyderabad, Ahmedabad, Surat, Jaipur and Rajkot. Find your nearest office.
Depending on your production needs, you may also want to compare the ZCZB-BS3(400) 3D Printer, Advance 3D Matrix and Plempire PL6100. See the full Jewellery 3D Printer range to compare every model.
Still have questions? Call or WhatsApp +91 9130528227 or contact AS Technology.
