Advance 3D Matrix Overview
- Build Volume294 × 211 × 144 mm (11.6 × 8.3 × 5.6 in)
- Layer Resolution2900 × 2900 × 1700 DPI; layer thickness 15 µm
- Dimensional Accuracy±0.04 mm per 20 mm
Advance 3D Matrix refers to a high-precision, industrial-grade wax material system used in specialized 3D printers for the jewelry and precision casting industries. Often sold as a comprehensive "system" (e.g., the Advance 3D Matrix 3D Printer), it is primarily designed to replace traditional manual mold-making with rapid, automated wax prototyping.

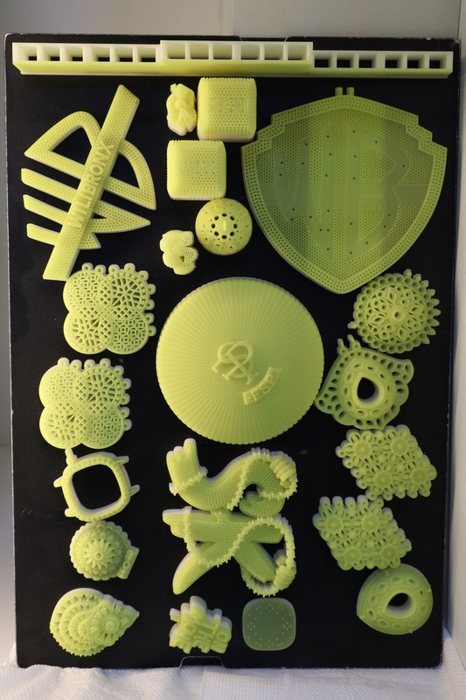

Sample Prints & Materials
Product Specifications
| Category | Indicator Name | Model Wax | Support Wax |
|---|---|---|---|
| Basic Properties | Material Name | JW300-GP | JW100-G |
| Color | Purple | White | |
| Net Weight | 1.17kg/bottle | 1,30kg/bottle | |
| Density (g/cm³) at 95°C (Equid) | 0.74 | 0.86 | |
| Melting point range (°C) | 65-75°C | 55-65°C | |
| Mechanical Properties | Volume shrinkage | 1.11% | / |
| Linear shrinkage | 0.70% | / | |
| Needle Puncture Hardness | 11 | / | |
| Printing Performance | Print layer thicknes (µm) | 16-32 µm | 16-32 µm |
| Support removal method | Not applicable | Solvent soluble or hot melt | |
| Ash content | >0.01% | / | |
| Compatibility | Compatible Printer Models | Elite series and other mainstream brands | Elite series and other mainstream brands |
| Safety and Environmental Protection | Biodegradability | None | Partially degradable |
| Storage Conditions | Optimum storage temperature (°C) | 0-25°C | 15-25°C |
| Shelf life (years) | 3 years | 3 years |
Related Products
Advance 3D Matrix FAQs
Advance 3D Matrix refers to a high-precision, industrial-grade wax material system used in specialized 3D printers for the jewelry and precision casting industries. The Advance 3D Matrix is part of our Jewellery 3D Printer range.
Key specifications of the Advance 3D Matrix: Net Weight: 1.17kg/bottle 1,30kg/bottle; Basic Properties: Material Name JW300-GP JW100-G; Color: Purple White; Density (g/cm³) at 95°C (Equid): 0.74 0.86; Melting point range (°C): 65-75°C 55-65°C. The full specification table is shown above on this page.
The Advance 3D Matrix price depends on the configuration you choose and current rates. For an up-to-date quote, call or WhatsApp +91 9130528227, or send an enquiry using the form below, where the Advance 3D Matrix is already selected.
You can buy the Advance 3D Matrix directly from AS Technology. We supply customers across India from our Mumbai head office and branch offices in Delhi, Bengaluru, Hyderabad, Ahmedabad, Surat, Jaipur and Rajkot. Find your nearest office.
Depending on your production needs, you may also want to compare the Plempire PL6100, LINERASE™ Wax Line Remover and Flashforge WJ51C. See the full Jewellery 3D Printer range to compare every model.
Still have questions? Call or WhatsApp +91 9130528227 or contact AS Technology.
