Jewellery Casting Machines

Vulcanizers, wax injectors, burnout furnaces, casting machines, gold melters and refinery equipment for complete jewellery casting workshops.

Vulcanizer for jewellery rubber moulds

Vulcanizer

  • Use for making Rubber Dies
  • Digital PID Controller
  • Digital Timer
  • K-type Sensor
  • Power on & Heat on Indicator
  • Easy to install & maintain
View Details
SpecificationDetails
Electric Supply230V AC, Single Phase
Power Consumption1 KW
Maximum Opening4.5"
Maximum Temperature200 c
Maximum Timer99 Minutes
Auto clamp wax injector for jewellery wax patterns

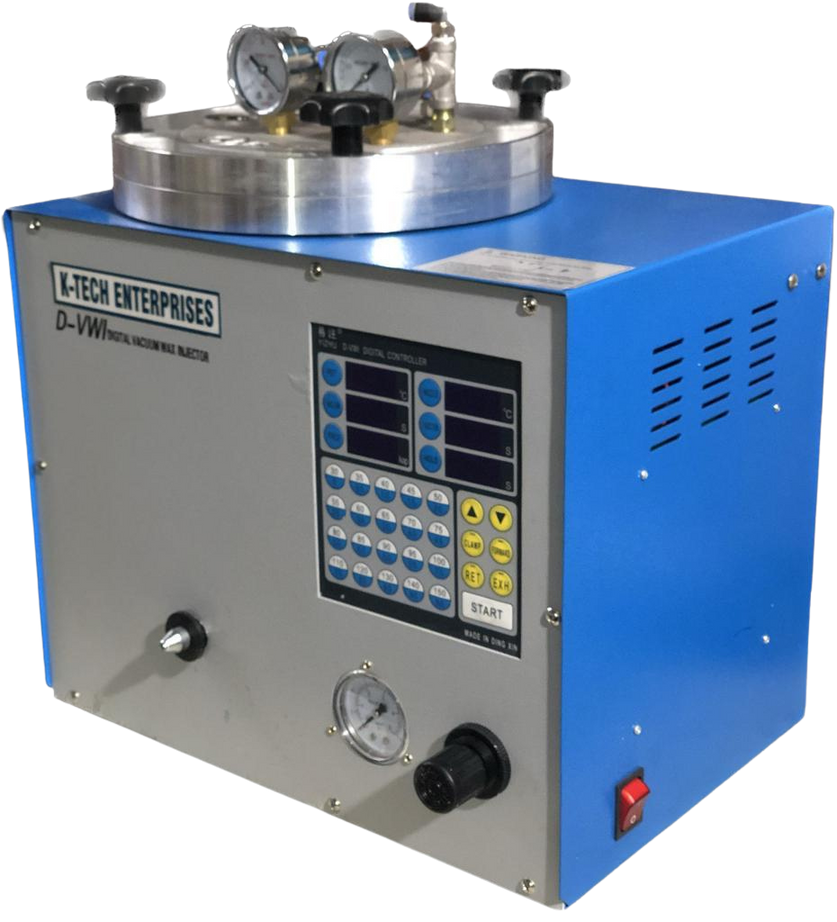

Auto Clamp Wax Injector

  • Higher Wax Productivity & Repeatable Result
  • Digital PID Temperature Controller for Tank
  • Wax Chamber Aluminum Tank
  • Inbuilt Filer ensures reuse or Wax
  • Analogue Regulator for precise air pressure control
  • Provision for Wax Removal
  • A Single Switch Control Full Program
  • Vacuum Time, Injection time & Cool Time can be set on the programmer. Vacuum draws air out of the mold before wax is injected, eliminating the tapped air bubbles & voids.
View Details
SpecificationDetails
Electric Supply230V AC, Single Phase
Power Consumption900 KW
Wax Capacity25KG
Air required0-60 psi
Max Mould Size100mm x 100mm x 38mm

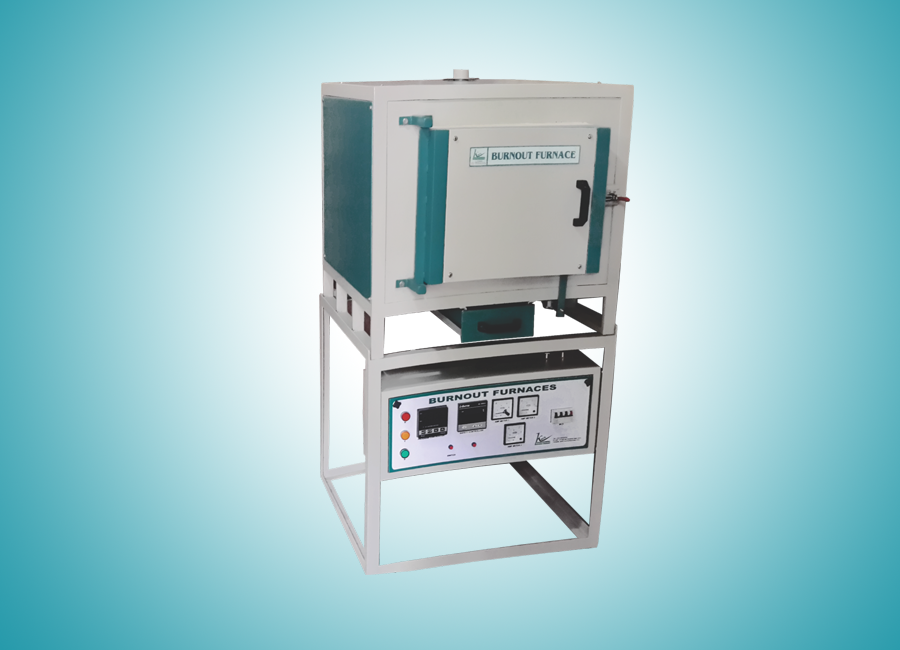

Burnout furnace for jewellery casting

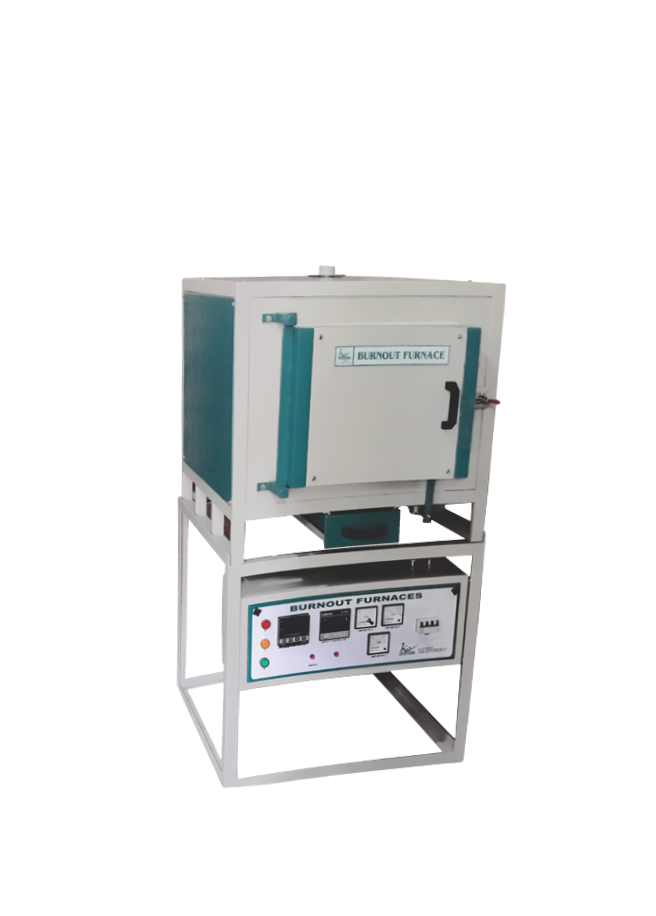

Burnout Furnace

  • High Density Insulation material to prevent heat loss
  • Digital PID profile temperature controller having 8 step memory or 16 steps single memory.
  • Comfortable working height ensures ease of operation
  • Power On & Heat On Indicator
  • Power Coated MS Fabrication
  • Attached Control Panel
View Details

Technical Specifications

ModelKTE6KTE12KTE16
Flask Capacity61218
Power Supply1Φ, 230V AC, 6 KW3Φ, 440V AC, 9 KW3Φ, 440V AC, 12 KW
Over Dimension (mm)749x559x1422965x712x1397965x712x1651
Net Weight180 Kg.325 Kg.300 Kg

With Internal Air Circulation Fan

ModelAF6AF12AF18
Over Dimension (mm)508x762x1397914x1397x15241016x1524x1651
Net Weight275 Kg.400 Kg.497kg

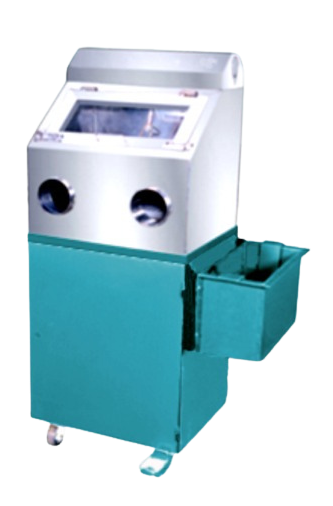

Water jet machine for removing investment from castings

Water Jet Machine

  • Engonomically lit. up
  • Rust-proof Divesting Cabinet with high-pressure water pump for quick & total cleaning, setting tank with a S. S. Trap
View Details
SpecificationDetails
Electric Supply3 Phase 440V AC, 0.75 KW
Water Inlet250 CFM (Max)
Water Pressure40-110 bar (Max)
3-in-1 jewellery casting machine

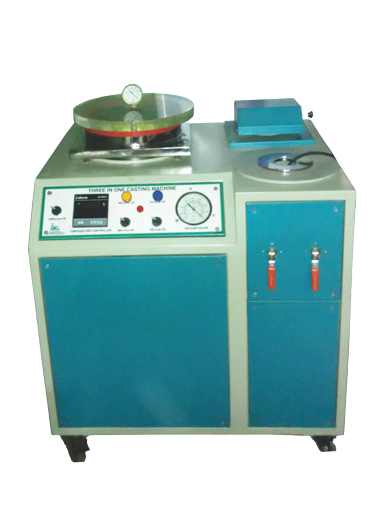

3-in-1 Casting Machine

  • Ideal for investment. Melting & Casting-3 application in a device.
  • Digital PID Temper ature Controller.
  • Isolated Low Voltage Heating System.
  • High Vacuum Suction.
  • Powder Coated MS F abrication.
  • Fully SS Fabrication.
  • Easy to install & maintain.
  • User friendly.
View Details

Technical Specifications

Electric Supply230V AC, Single Phase
Power Consumption2.2 KW
Maximum Temp115°C
Vacuum Pump350 Lit/min
Flask Size(casting)4"Dia*8"Hight
Melting capacity1KG
Pressure casting machine for jewellery

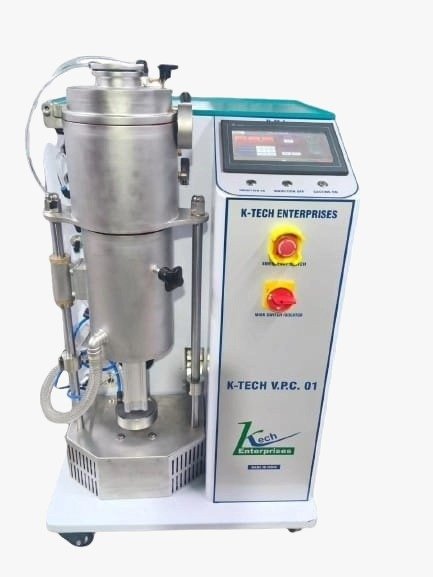

Pressure Casting Machine

Create flawless jewelry with AS Technology's Pressure Casting machines. These professional systems melt alloys up to 1300°C and use an integrated vacuum pump to ensure dense, porosity-free castings. Available in various crucible capacities, including 3 kg and 5 kg for gold, they are versatile and powerful tools for any jewelry manufacturer.

View Details

Product Specifications

SpecificationPressCast 3JOUPT-017-660
Power (max)11.0 kW11.0 kW
Frequency6 kHz6 kHz
AC Line(50/60Hz), 3 Phase400 V ±10%
Melting Temperature (max)1300 °C1300 °C
Crucible Capacity3 kg Au5 kg Au
Crucible Volume208 cm3430 cm3
Flask Size mm (min), DxH87 x 12780 x 127
Flask Size mm (max), DxH120 x 300120 x 300
Vacuum PumpIncludedIncluded
Cooling Requirements water system quoted upon requestWater (External)Water (External)
Cooling Water (min)5.8 Lpm (1.53 Gpm)5.8 Lpm (1.53 Gpm)
Inlet Water Temperature (max)35 °C35 °C
Weight Lb (kg)639.3 (290)937 (425)
Dimensions, Inch (mm) LxWxH27.6" x 39.8" x 53.1" (700 x 1010 x 1350)27.6" x 39.8" x 53.1" (700 x 1010 x 1350)
Magnetic polisher for jewellery finishing

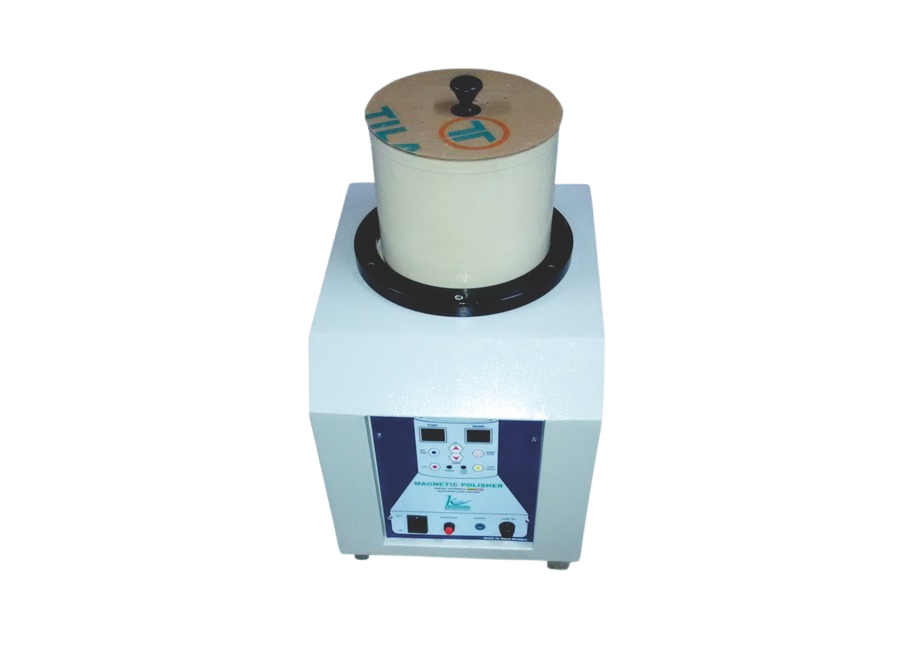

Magnetic Polisher

  • Fully automatic, having forward & reverse motion, which is managed by a Programmable Controller.
  • Used for Prime Polish
  • Fantastic Speed range of 2800 RPM
  • Gives a Bright Finish to Jewellery
  • Polish hard-to-reach areas where hand & Tools can't reach
View Details

Technical Specifications

ModelKTE-MPD 500KTE-MPD 1000KTE-MPD 1000
Capacity250 gm400-600gm400-600gm
Bowel Size8"*6" PP & Acrylic10"*8" PP & Acrylic10"*8" PP & Acrylic
MotorAC motor 0.5 hpAC Motor 1.0 hpAC Motor 1.3 hp
SpeedConstant 2800RpmConstant 2800RpmVariable 2800Rpm
Input Voltage230V Ac 1 PH.230V Ac 1 PH.230V Ac 1 PH.
TimerDigital forw/rewDigital forw/rewDigital forw/rew
SafetyAutomaticAutomaticAutomatic
Dimension12.75"*12.75"*14.5"13.5"*13.5"*16.5"13.5"*13.5"*16.5"
Auto steamer for jewellery cleaning

Auto Steamer

  • Available in Auto Fil.
  • Rust Free Stains Less Steel Body Maxt Dry Steam
  • Automatic Pressure & Temperature Cut-Off Switch
  • Safety Valve For Over Pressue Release
View Details
SpecificationDetails
MODELKTE-STM 6000M
Power Supply1 Phase, 230V AC 2 KW
Capacity15 Ltr

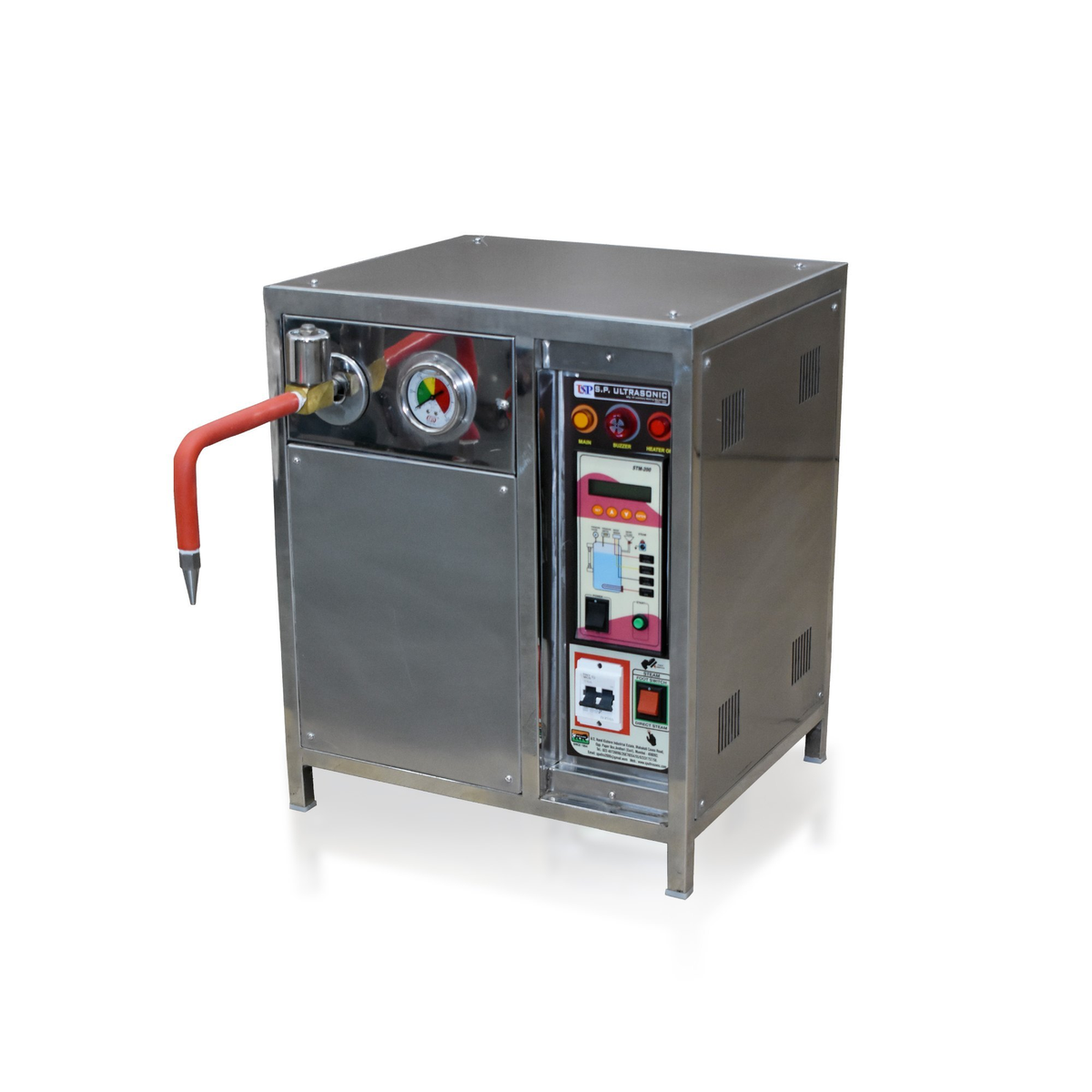

Steamer for jewellery cleaning

Steamer

  • Available in auto & manual Water fills
  • Rust-free free fully stainless steel body
  • Max dry steam temp of 180 c.
  • Automatic pressure & temperature cut-off switch
  • Safety valve for over-pressurization.
  • Maintainance free machine
View Details
MODELKTE-STM 6000MKTE-STM 9000MKTE-STM 15000MKTE-STM 20000M
Capacity6 liter9 liter15 liter20 liter
Power Consumption3000 Watt3000 Watt4000 Watt5000 Watt
Water FillingManualManualManualManual
Tank MaterialMild steelMild steelMild steelMild steel
Tank Thickness10 mm10 mm10 mm10 mm
Input Volgage230V AC 1 Ph230V AC 1 Ph230V AC 1 Ph230V AC 1 Ph
Water levelAuto SensorAuto SensorAuto SensorAuto Sensor
SafetyPressure SwitchPressure SwitchPressure SwitchPressure Switch
Steam Pressure100 psi100 psi100 psi100 psi
Ultrasonic cleaner for jewellery

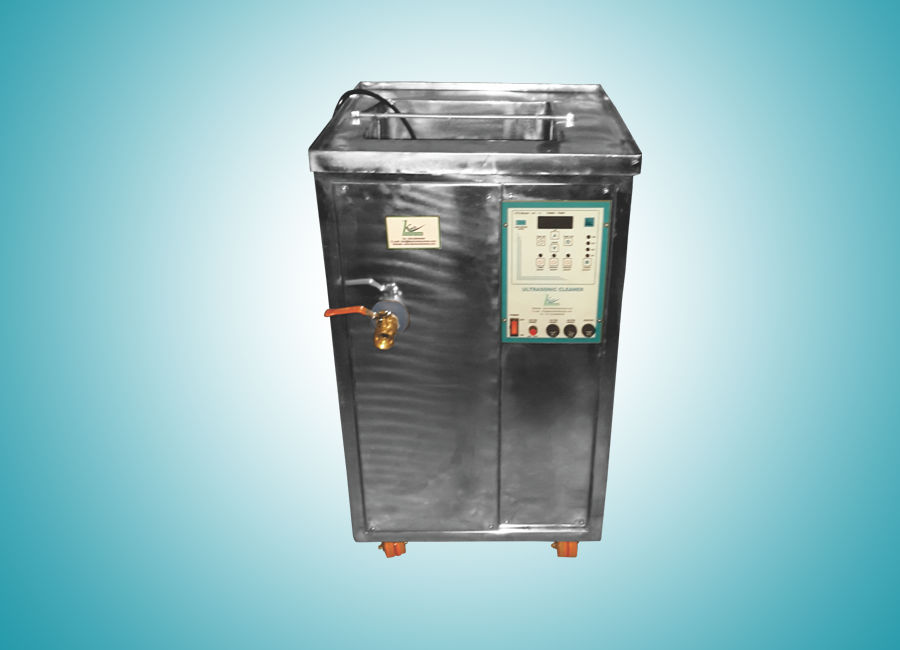

Ultrasonic Cleaner

An ultrasonic jewellery cleaner removes polishing compound, dirt and oil from rings, chains and settings using high-frequency sound waves in heated water.

  • Power generating frequency at 35 ± 5 kHz
  • Heating temperature 65°C
View Details
MODELKTE-Uc 6KTE-UC 9KTE-UC 20KTE-UC 25KTE-UC 30
Capacity6 liter9 liter20 liter25 liter30 liter
Input Flower150 watt250 watt500 watt750 watt1000 watt
Unknown Frequency33+ - 5%33+ - 5%33+ - 5%33+ - 5%33+ - 5%
Input Voltage230V AC 1 Ph230V AC 1 Ph230V AC 1 Ph230V AC 1 Ph230V AC 1 Ph
Tank Material304/16 swg304/16 swg304/16 swg304/16 swg304/16 swg
Other Body202/20 swg202/20 swg202/20 swg202/20 swg202/20 swg
Heater Capacity500 watt500 watt500 watt500 watt500 watt
Jewellery polishing machine

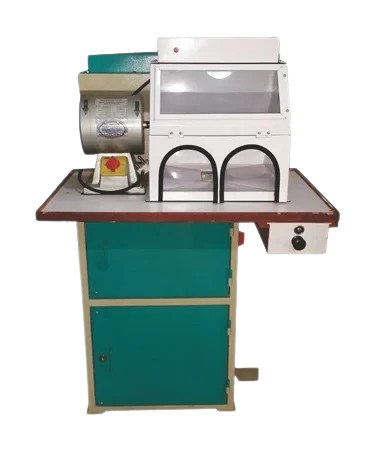

Jewellery Polishing Machine

  • Strong suction motor.
  • Exclusive Wooden Formica top with two no's of drawers.
  • Pocket cloth filters 10 microns.
  • More filter capacity.
  • Silencer for noise reduction.
  • Locking facility.
View Details
MODELKTE PL SIKTEPL D 2
Power Supply1/3ph, 230/440V AC 0.751/3ph, 230/440V AC 0.75
Suction Power250 CFM/station250 CFM/station
Operating personSingleDouble
Sound level68db (Approx)68db (Approx)
Investment mixer for jewellery casting

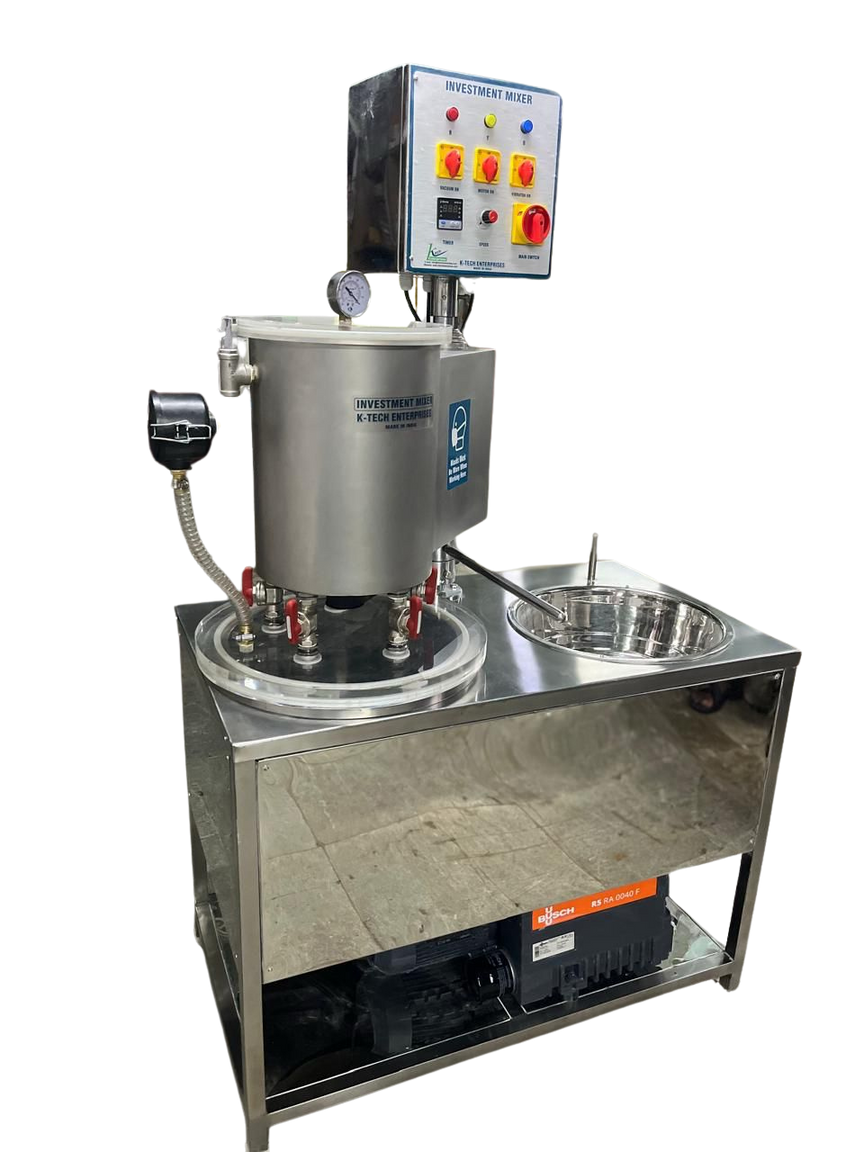

Investment Mixer

  • Embedding the Wax Tree Under Vacuum to Obtain.
  • Uniform Slurry & Nodule Free Casting.
  • 5 Nozzle Mahin for a 5 Flask Powder Filling
  • Imported Ball Valve
  • Speed Variable Motor
  • 2 Filter Pump & Tank Attach
  • Vibraer System
  • 40 Bush Pump
View Details
SpecificationDetails
Power Supply3 Phase, 440V, 2.2 KW
Ball ValveImported
MotorSpeed Variable motor
Filter Pump & Tank2 Filter pump & tank attach
SystemVibrating system
Pump40 Bush pump

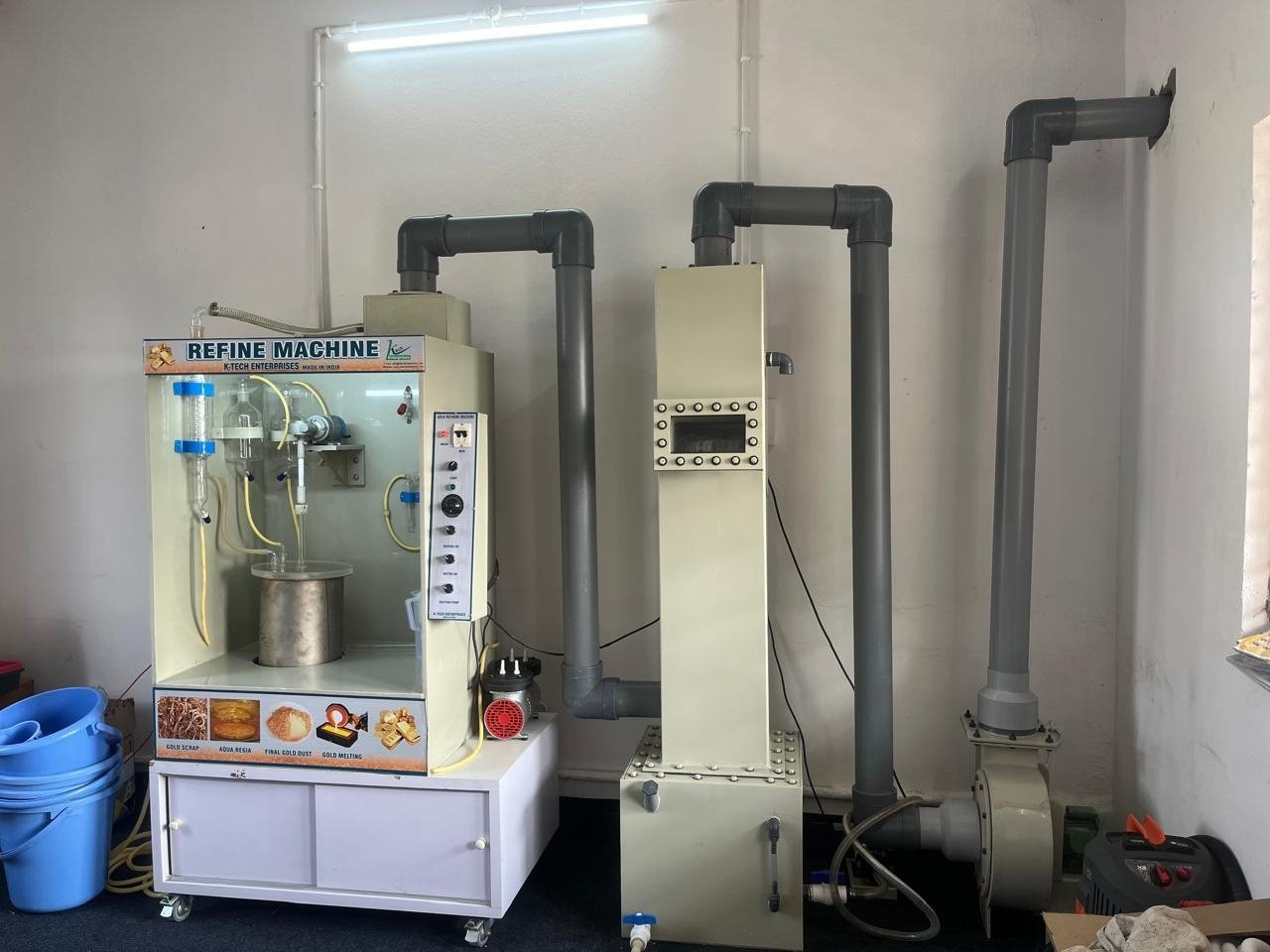

Gold refinery machine

Gold Refinery Machine

  • Refine all your gold in your own premises under your supervision in a pollution-free environment.
  • High profits - As the purity is 999 and better, compared to other methods,
    where you incur a loss.
  • Minimum handling of equipment. Short Process time, low economical process cost.
View Details
MODELKTE STTAP 1KTE GR 2/3
Power Supply50, HZ, 230V230V AC 1 PH
Capacity Gold3 KG Per Day 1 KG Per Batch6/9 KG Per Day 2/3 KG Per Batch

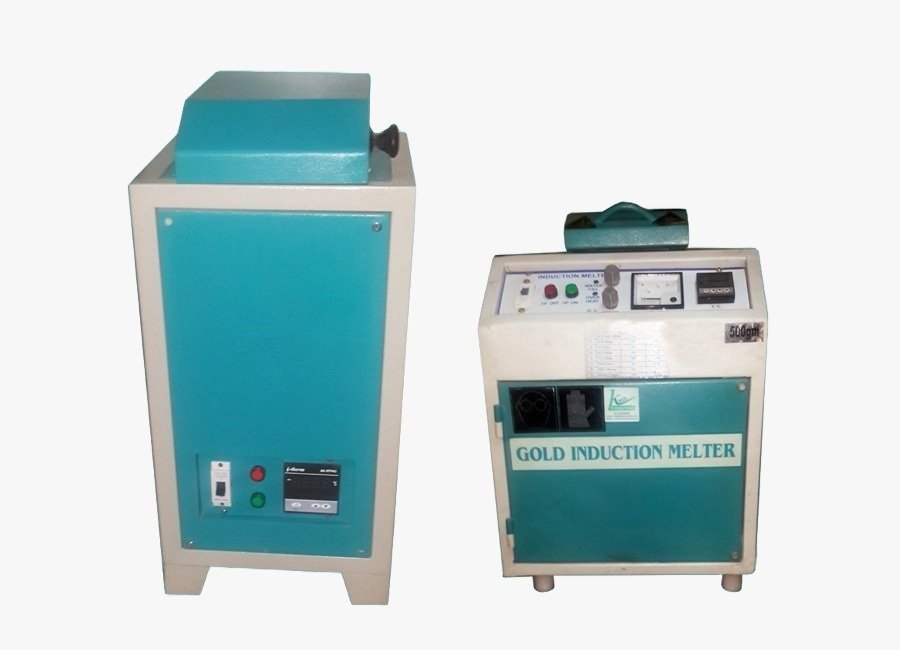

Gold induction melting machine

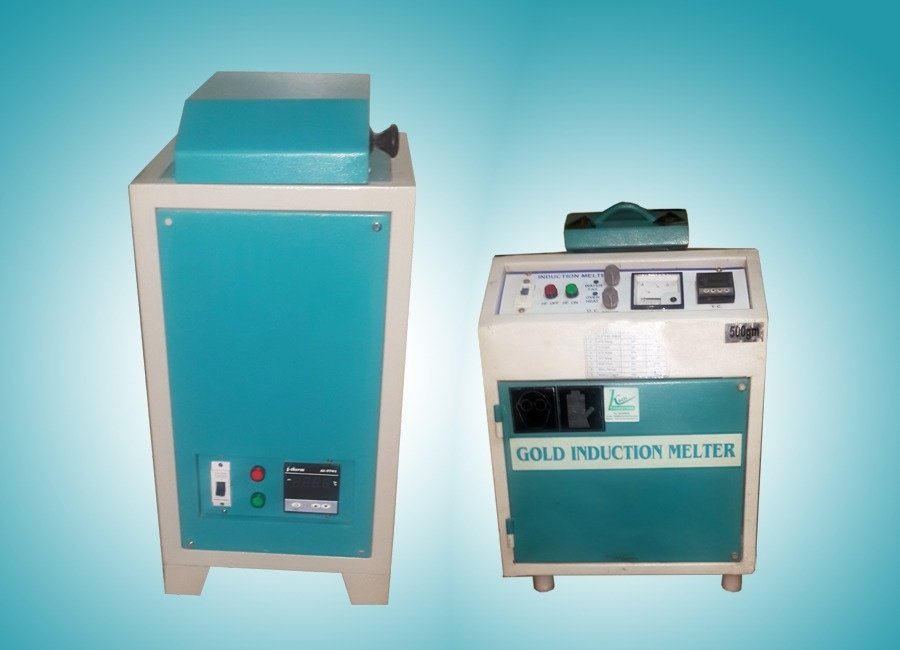

Gold Induction Melter

  • K-Tech presents Medium frequency induction Melting Machine for
    jewellery application.
  • Latest IGBT technology for High efficiency and High performance.
  • Medium Frequency induction melting gives churning that ensures
  • Homogeneous mixing of metals and perfect "Touch".
  • A temperature of more than 12000 °C is possible for palladium
    based white gold alloys
View Details
SpecificationDetails
Power Consumption4 KW-50KW
FrequencyMedium Frequency
Capacity1/2 Kg to 50 Kg
Time to Melt8-10 Min
Max Temperature1200 C (1400 C optional)
Water Circulation6-8 Lit. per minute
Lapping machine for jewellery polishing

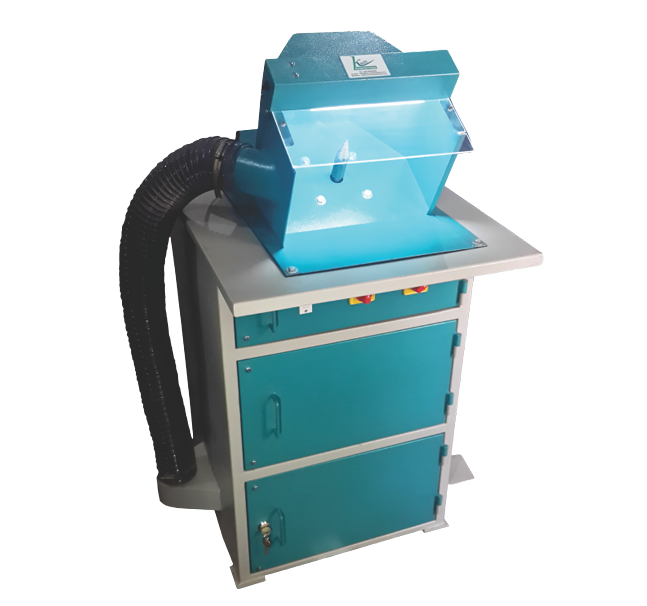

Lapping Machine

  • Engonomically lit up
  • Power-coated machine mounted at an angle of 45 degrees. Wth efficient suction.
View Details
SpecificationDetails
Power Supply3 Phase 440V AC, 0.75 KW
Blower Suction250 CFM (Max)
Dust Filler5 Micron Bag
Settling tank for recovering precious metal waste

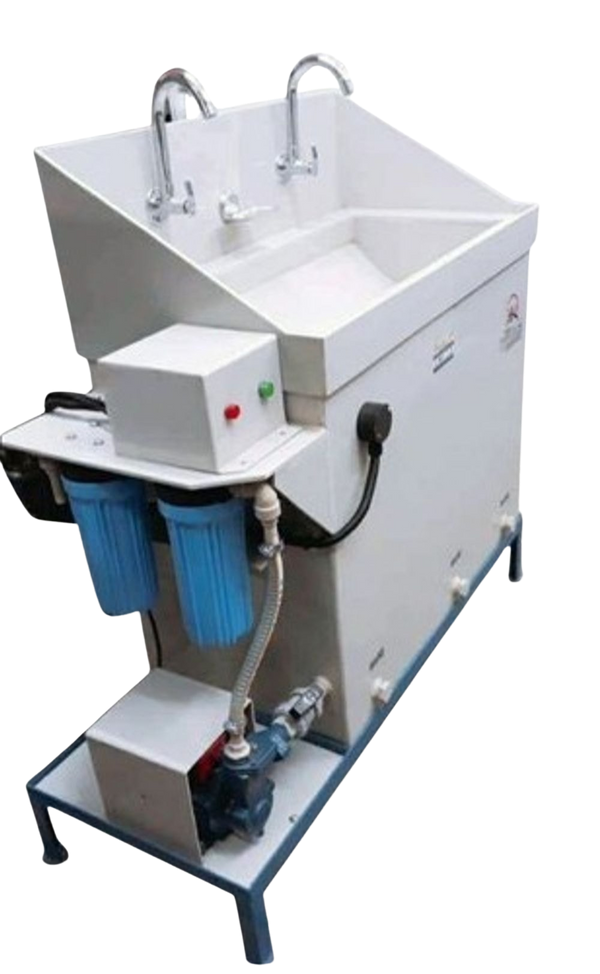

Settling Tank

  • Fully PVC. body
  • Wash Basin & Water tap.
  • Water level controlling & pumping unit.
  • Available in custom made design
View Details
MODELKTE ST TAP 1KTE ST TAP 2
Power Supplylph,230V AC 0.5 kwlph,230V AC 0.5 kw
Water TapOne TapTwo Tap
Filtration5 micron & 10 micron5 micron & 10 micron

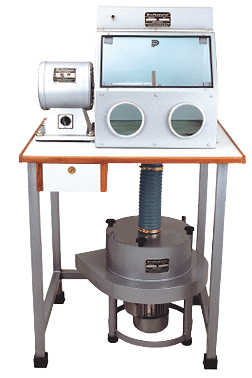

Super grinding machine

Super Grinding Machine

  • High-efficiency Dust Collector system by heavy suction of the blower.
  • 5 Micron filter bag for high rate of recovery.
  • HP pedestal motor of 2800 rpm. With 7 long grinding spindles & wheel.
  • Use acrylic wood for high thickness with light reflector.
View Details
SpecificationDetails
Power Supply3 Phase, 440V AC 0.75 KW
Blower Suction250 CFM (Max)
Dust collector for jewellery workshops

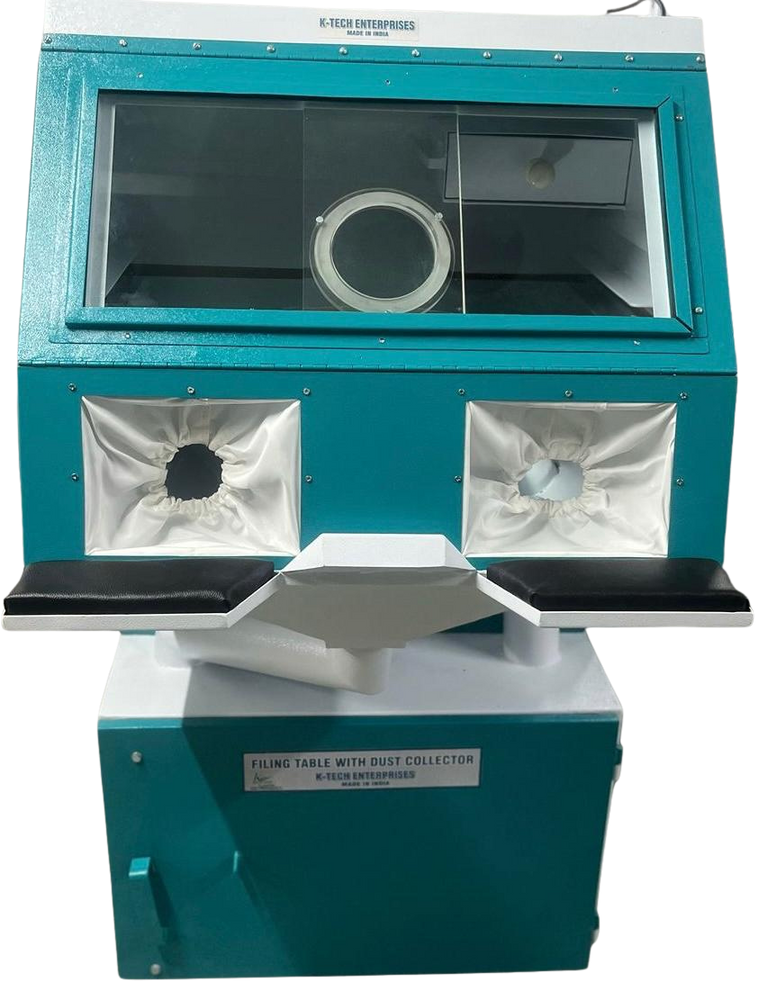

Dust Collector

  • High efficient Dust Collector system by Heavy suction of blower
  • Use Micron filter bag for high rate of recovery
View Details
SpecificationDetails
Power Supply1/3 Phase, 230V440V AC 0.5 KW
Blower Suction250 CFM (Max)
2-in-1 casting machine with stainless steel body

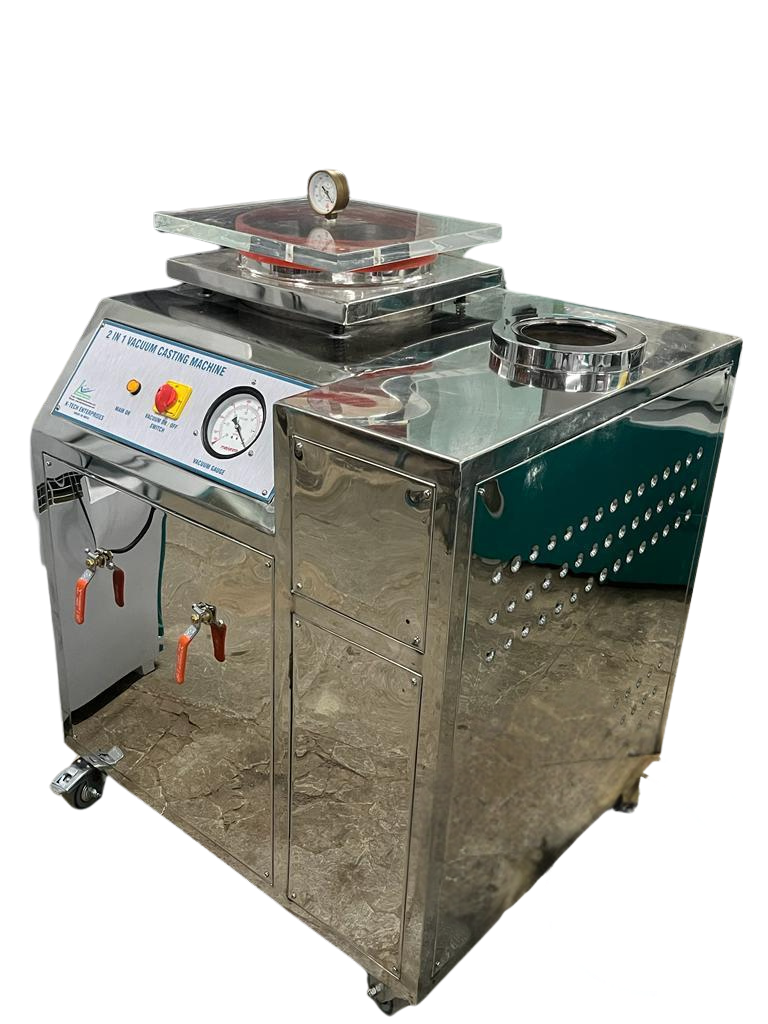

2-in-1 Casting Machine (SS Body)

  • Trolley-Mounted Structure.
  • Investment of Powder, Melting, and Casting is Possible
  • Double tank storage vacuum gives the best result for filigree work.
  • Double Stage Vacuum Pump
View Details
SpecificationDetails
Power Supply1/3 Phase, 230V440V AC 0.5 KW
Blower Suction250 CFM (Max)
Manual gold refinery machine

Manual Refinery Machine

  • Refine all you can in Your Own Premises Under Your Supervision in a pollution-free environment
  • Very High Efficient Recovery
  • High Profits As Purity of 99 And Better Compared to Other Methods
  • Minimum Handling of Equipment.
  • Short Process time, Low Economic Process Cost.
  • Fully P P Structure
  • 1 HP Blower
  • High efficient Dust Collector system by Heavy suction of blower
  • Use Micron filter bag for high rate of recovery

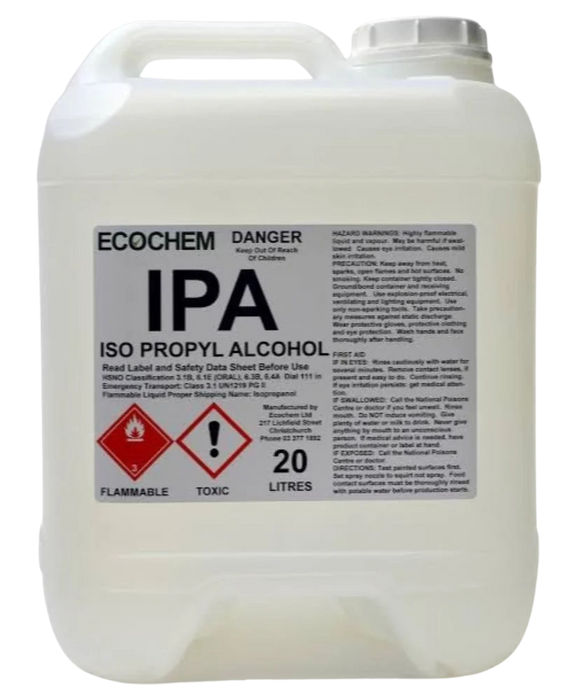

IPA isopropyl alcohol for cleaning 3D prints

IPA (Isopropyl Alcohol)

Isopropyl Alcohol (IPA) from AS Technology is a high-purity, versatile solvent ideal for a wide range of industrial, commercial, and personal applications. Chemically known as Propan-2-ol (C3​H8​O), this clear, colorless liquid is an essential component for various processes.

View Details

Product Specifications

SpecificationDetails
Chemical FormulaC₃H₈O or C₃H₇OH
IUPAC NamePropan-2-ol
AppearanceColorless liquid
OdorDistinctly alcoholic
PropertiesFlammable, miscible with water, and a solvent

Common Uses

UseDetails
Antiseptics & DisinfectantsEffectively eliminates germs on skin and surfaces.
Cleaning AgentUsed in electronics to clean components, in the automotive industry to clean grease, and in printing to dissolve inks.
Cosmetics & Personal CareIncluded in some personal care products for hygiene and product safety.
LinimentsActs as a liniment by irritating the skin to increase blood circulation, helping to reduce pain and inflammation.

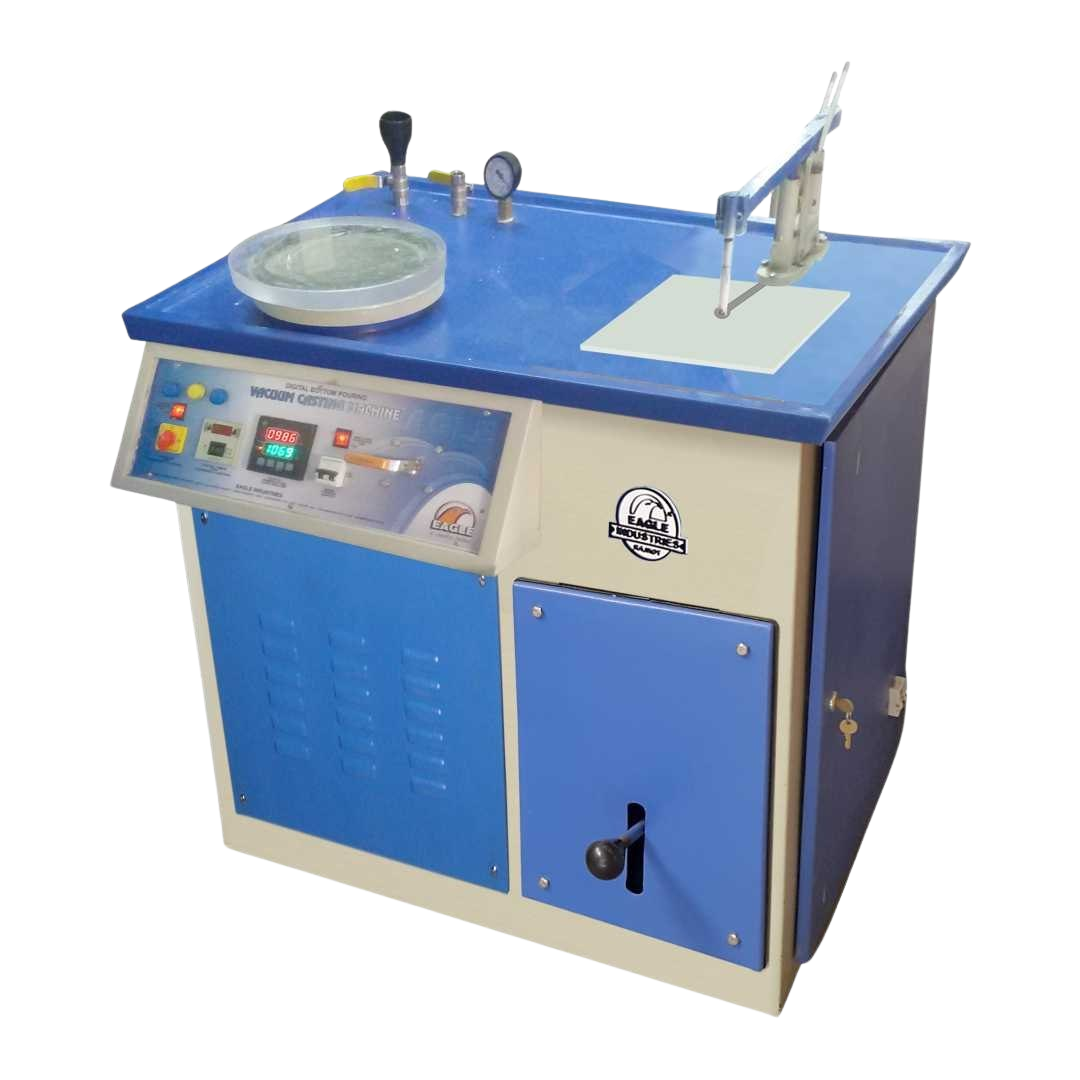

Bottom pouring casting machine

Bottom Pouring Machine

  • Trolley-Mounted Structure.
  • M.S. as Well as S. S Body.
  • Investment of Powder, Melting, and Casting is Possible.
  • Single tank Storage Vacuum gives the best result for filigree work.
  • Vacuum pump 450 Itr (Double Stage).
View Details

Product Specifications

SpecificationDetails
Power Supply1 Phase, 230V AC 5 KW
Melting Capacity1 KG
Wet super grinding machine

Wet Super Grinding Machine

  • Inbuilt Water System, Water Pump
  • Grinder 0.5 HP
  • Variable Speed Motor with Acrylic Hood
  • Fully S S Body
View Details

Product Specifications

SpecificationDetails
Power Supply0.75 KW
Air Pressure0.1 to 0.5 KG

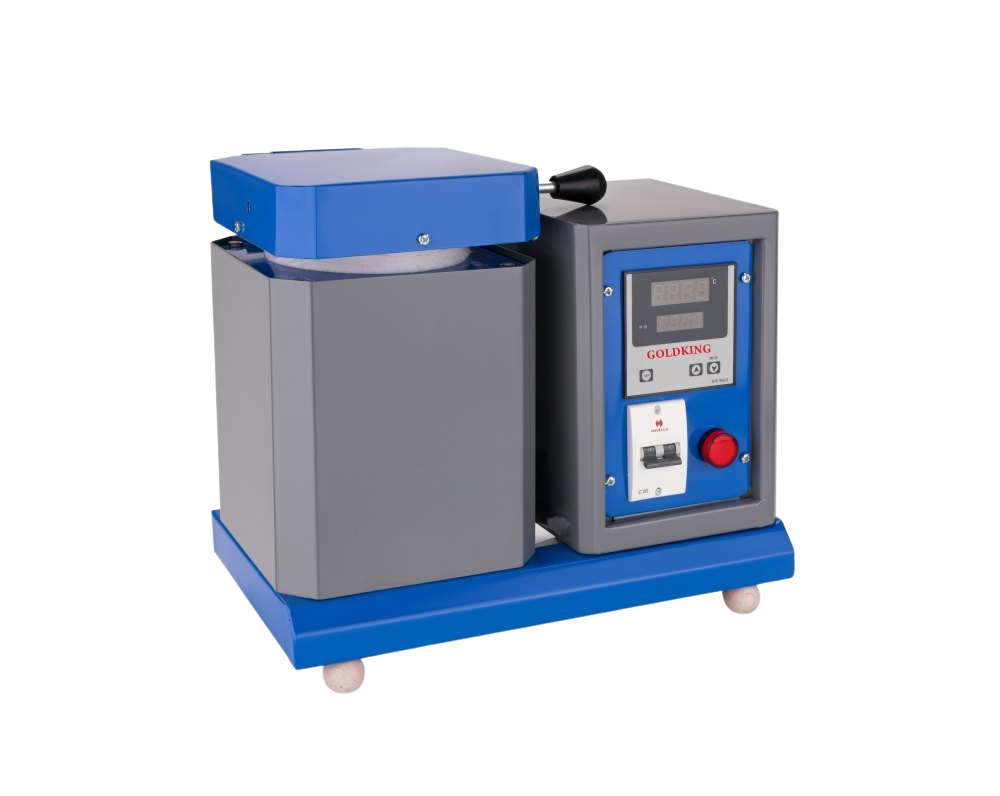

1 kg gold melting machine

1 kg Gold Melter

  • Transformer Basic Low Voltage Coil
  • Digital Temperature Controller
  • K-Type Thermocougle
View Details

Product Specifications

SpecificationDetails
Power Supply0.75 KW
Air Pressure0.1 to 0.5 KC
Debubblizer machine for wax trees

Debubblizer Machine

  • Trolley Mounted Structure
  • M.S. Body
  • These Debubblers Are Used To Remove Air From Inverted Flask
  • A Debubblizer Removes Air From The Slurry Using A High Powered
    Vacuum Pump
  • This Helps in Obtaining Air Bubble Free Smooth Surfaces Casting
View Details

Product Specifications

SpecificationDetails
Power Supply1 Phase 230 V

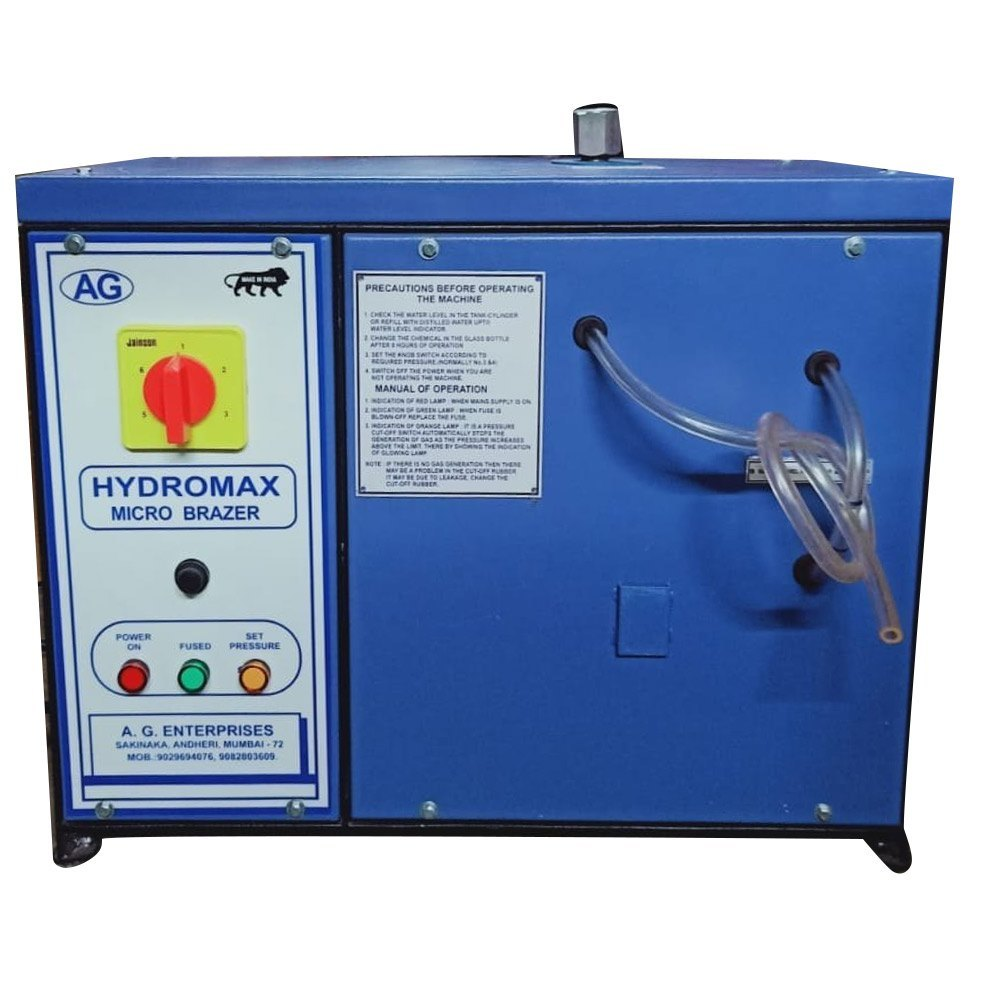

Hydromax micro brazer with 4 torches

Hydromax Micro Brazer (4 Torch)

  • The Hydromax Brazer Produces A High Temperture Flame
  • Without the Need of Fuel, Gas or Messy Chemicals.
  • It Works On Electro Chemical Splitting of Water & Productes An
  • Intense Oxy Hydrogen Flame.
  • Transformer Basis
View Details

Product Specifications

SpecificationDetails
Power Supply1 Phase, 230V AC 5 KW
Melting Capacity1 KG
FAQ

Jewellery Casting Machine FAQs

A complete jewellery casting workshop needs machines for each stage: a vulcanizer and wax injector for wax patterns, an investment mixer and burnout furnace for the flask, a casting machine to pour the metal, and polishing and cleaning equipment to finish. We supply every stage, and our jewellery 3D printers can replace rubber moulds for new designs.

For fine filigree work, choose a vacuum casting machine such as our 2-in-1 Casting Machine (SS Body) or Bottom Pouring Machine, whose vacuum systems give the best results on delicate detail. For dense, porosity-free castings, our Pressure Casting Machine melts alloys up to 1300°C and comes with 3 kg and 5 kg gold crucibles.

Yes. Our gold induction melter uses medium-frequency IGBT technology for homogeneous melting, and the 1 kg gold melter suits smaller batches. For refining, our gold refinery machine lets you refine gold in your own premises, in a pollution-free environment, reaching 999 purity with a short process time and low running cost.

Use recovery equipment at every bench. Our dust collectors and filing table with dust collector (250 cfm suction at every inlet) capture fine metal dust in micron filter bags, and the super grinding machine has a 5-micron filter bag. A settling tank at the wash basin helps collect precious metal from wash water.

Jewellery casting machine prices in India depend on the machine type, crucible capacity and body material. For example, our pressure casting machines come in 3 kg and 5 kg gold capacities, and the bottom pouring machine is available with an M.S. or S.S. body. For a current quote on any model, call or WhatsApp +91 7021118534.

Still have questions? Call or WhatsApp +91 7021118534 or contact AS Technology.

Contact Us

Let’s Build Something Great Together

Have questions or need support? Get in touch with AS Technology today, we’re here to help.

Send an Enquiry

Download Brochure
