The WJ51C combines high toughness wax material with precise performance to reduce defects and ensure reliable casting results. It enables on demand loading with small wax blocks, improving material utilization up to 55 percent and lowering costs. The machine delivers smooth, accurate models that reduce post processing work by around 30 percent. Its industrial grade design supports continuous operation while offering 30 to 50 percent lower overall operating costs.
| Specification | Details |
|---|---|
| Print Technology | MultiJet Printing (MJP) |
| Build Volume | 235 × 138 × 100 mm |
| Resolution | 2900 × 2900 × 1700 DPI; Layer Thickness: 15 µm |
| Dimensional Accuracy | ±0.04 mm / 20 mm |
| Material Utilization | Part wax utilization rate ≥57% |
| Print Speed | Single-channel: 7 mm/h; Dual-channel: 3.5 mm/h |
| Slicing Software | WaxJetPrint |
| Supported File Format | STL / SLC |
| Connectivity | Network 10/100/1000 Ethernet; USB (Wi-Fi expandable) |
| Operating System | Windows 10 / Windows 11 (64-bit) |
| Power Supply | AC 100–250V, 50–60Hz, 2.2 kW |
| Operating Environment | Temperature: 18–26°C; Humidity: 30–70% |
| Equipment Dimensions | 865 × 510 × 654 mm |
| Equipment Weight | 115 kg |
| Packaging Dimensions | 1020 × 660 × 905 mm |
| Packaging Weight | 140 kg |
| Specification | FFWJ1200 | FFMS3200 |
|---|---|---|
| Material Type | Part Material | Support Material |
| Net Weight | 72 g/block | 180 g/block |
| Composition | 100% Wax | Wax Support Material |
| Color | Red | White |
| Density @90°C (Liquid) | 0.79 g/cm³ | 0.79 g/cm³ |
| Melting Point | 68°C | 55°C |
| Softening Point | 63°C | — |
| Volumetric Shrinkage | 1.10% | — |
| Linear Shrinkage | 0.70% | — |
| Needle Penetration | 9 | — |
| Ash Content | < 0.01% | — |
| Description | High-precision castable wax material | Hands-free dissolvable support material |

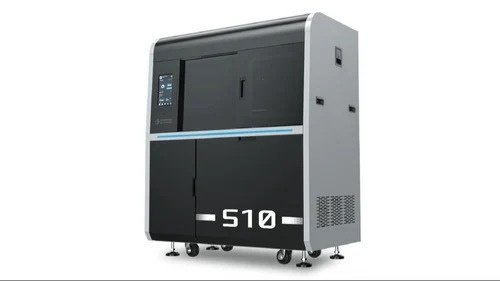

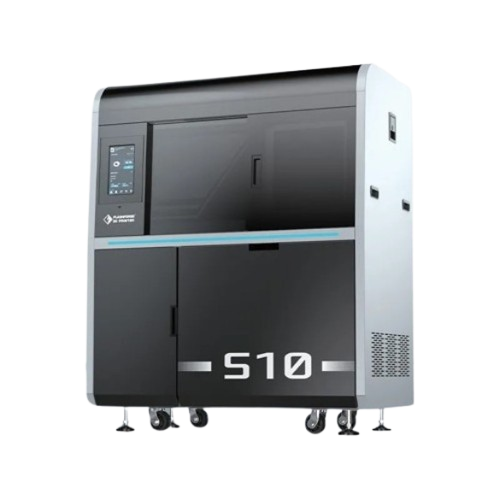

The Flashforge WaxJet 510 is an industrial-grade, high-precision 3D printer designed primarily for the jewelry and precision casting industries. Utilizing MultiJet Printing (MJP) technology, it produces high-definition wax models that are 100% castable, serving as a direct replacement for traditional manual mold-making.
| Specification | Details |
|---|---|
| Printing Technology | MultiJet Printing (MJP) |
| Build Volume | 289 * 289 * 100 mm |
| Printing Mode | XHD: 2900 * 2900 * 1700 dpi; layer thickness: 15 µm |
| Dimensional Accuracy | ±0.04 mm / 20 mm |
| Power Supply | AC220-240V, 50Hz, 4KW |
| Equipment Dimensions | 1352 * 775 * 1600 mm |
| Net Weight | 480 kg |
| Gross Weight | 630 kg |
| Package Size | 1530 * 900 * 1837 mm |
| Slicing Software | WaxJetPrint |
| Supported File Format | .stl / .slc |
| Email Notification | |
| Printhead | 510-One Printhead / 400 - Three Printhead |
| Hard Disk Capacity | 500 G |
| Connectivity | Network 10/100/1000 Ethernet / USB |
| Supported Operating System | Windows 7 / Windows 10 (64-bit) |
| Working Environment | Temperature: 18-26°C, Humidity: 30-70% |

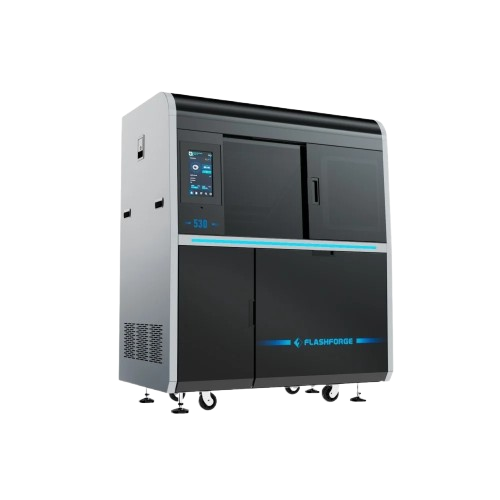

The Flashforge WaxJet 530 is a high-output, industrial 3D printer designed for professional jewelry manufacturing and high-precision industrial casting. It is a significant upgrade over the WaxJet 510, utilizing a triple-printhead system to deliver significantly higher production speeds while maintaining ultra-fine detail.
| Specification | Details |
|---|---|
| Printing Technology | MultiJet Printing (MJP) |
| Build Volume | 289 * 208 * 150 mm |
| Number of Printheads | 3 piezoelectric printheads |
| Dimensional Accuracy | 20mm ±0.04mm |
| Resolution | 2900 * 2900 * 1700 DPI, layer thickness: 15 µm |
| Material Utilization | Part wax utilization > 55% |
| Print Speed | 25.5 mm/h with layer thickness of 15 µm |
| Slicing Software | Wax Jetprint |
| Supported Input Formats | stl, slc |
| Connectivity | Network 10/100/1000 Ethernet/USB/Wi-Fi |
| Supported Operating System | Windows 7 / Windows 10 (64bit) |
| Operating Environment | Temperature 18-26 deg C, humidity : 30-70% |
| Equipment Dimensions | 1352 * 775 * 1600mm |
| Equipment Weight | 480 kg |
| Packaging Dimensions | 1530 * 900 * 1837mm |
| Packaging Weight | 630 kg |

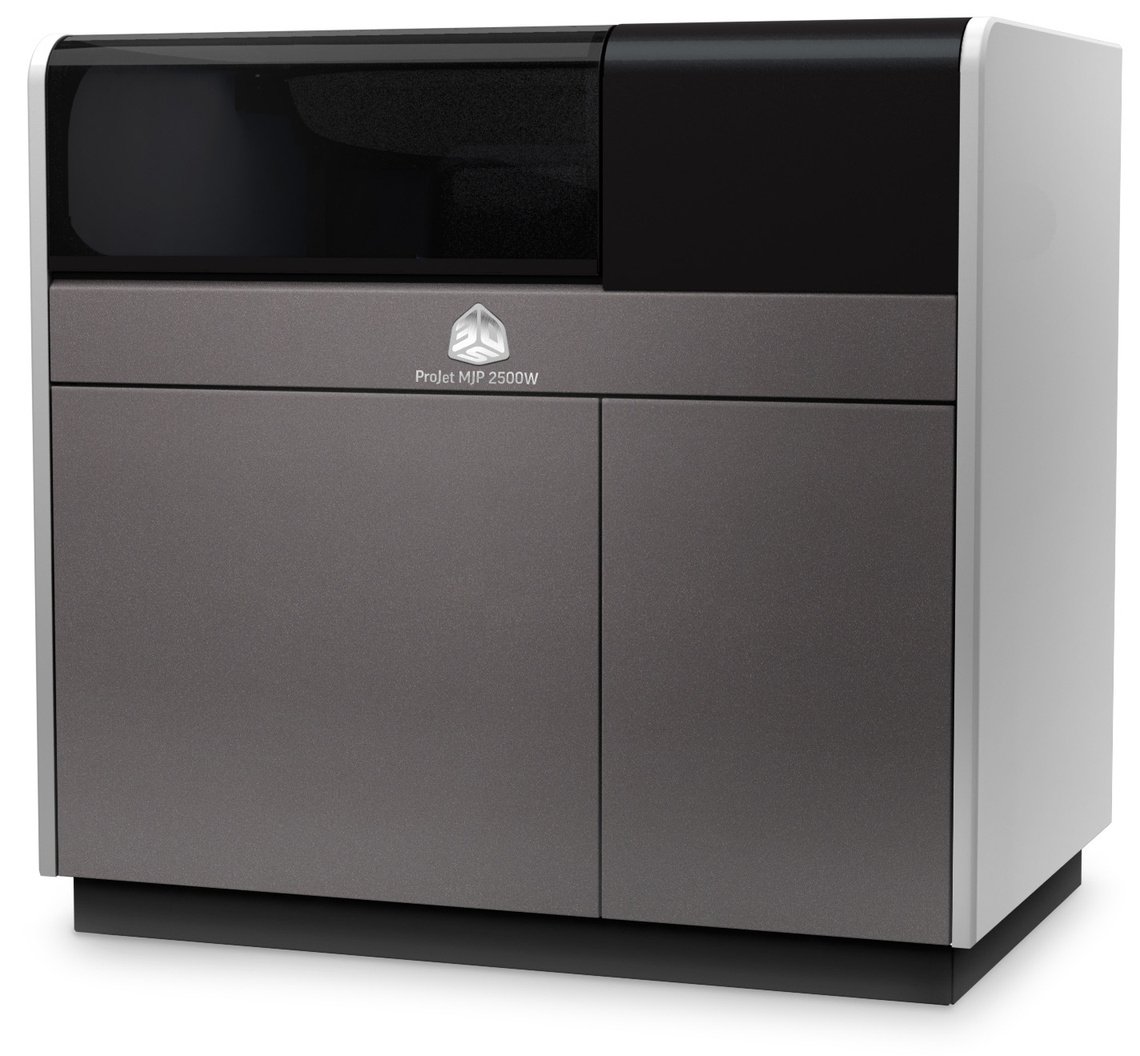

The 3D Systems ProJet MJP 2500W (and its upgraded Plus version) is a professional-grade 3D printer specifically engineered to produce high-precision, 100% wax patterns for lost-wax investment casting. It is primarily used in the jewelry and high-detail industrial casting sectors to replace traditional, time-consuming manual tooling.
| Specification | Details |
|---|---|
| Dimensions (WxDxH) 3D Printer Crated 3D Printer Uncrated |
1397 x 927 x 1314 mm (55 x 36.5 x 51.7 in) 1120 x 1070 mm (44.1 x 29.1 x 42.1 in) |
| 3D Printer Crated 3D Printer Uncrated |
325 kg (716 lb) 211 kg (465 lb) |
| Electrical | 100-127 VAC, 50/60 Hz, single-phase, 15A 200-240 50 Hz, single-phase, 10A Single C14 receptacle |
| Operating Temperature Range | 18-28C (64-82F), reduced print speed at > (770F) |
| Operating Humidity | 30-70% relative humidity |
| Noise | < 65 dBa estimated (at medium fan setting) |
| Certifications | CE |
| Specification | Details |
|---|---|
| Net Build Volume (xyz)1 | 1294 x 211 x 144 mm (11.6x8.3x5.6 in) |
| Accuracy (typical)2 | ±0.0508 mm/25.4 mm (±0.002 Win) of part dimension typical for any single printer ±0.1016 mm/25.4 mm (±0.004 in/in) of part Dimension across printer population |

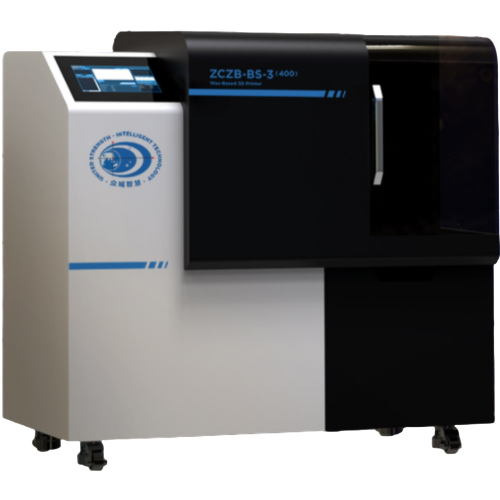

The ZCZB-BS3(400) is a professional-grade, large-format 3D printer that utilizes MultiJet Printing (MJP) technology to create high-precision wax models. It is specifically engineered for the jewelry industry and precision casting applications, allowing for the direct production of castable wax patterns without the need for traditional mold-making.
| Specification | Details |
|---|---|
| Molding method | MJP |
| Molding size | 400* 210* 144mm |
| Printing mode: XHD | XHD: 2880*2880*1700 & 2880*3400mm DPI: 7.5µ/15µ |
| Dimension accuracy | ±0.04mm/20mm |
| Power supply | AC220-240V, 50HZ, 3KW |
| Overall size | 1500*800*1400mm |
| Overall weight | 450KG |
| Package size | 1900*1000*1650mm (3.135cbm) 20ft container can loading 6set |
| Gross weight | 530KG |
| Application software | Wukong (Self-develop software) |
| Data support format | .stl/.slc |
| E-mail notify | Applicable |
| Disk Capacity | 500G |
| Network connection | Network 10/100/100 ethernet/ USB |
| Customer operation system | Windows 7/Windows 10 (64bit) |
| Operation environment | 18-28 deg C / 30-70% humidity |
| Head Qty | 3pcs of Xaar's Head |
| Build material | 3D-ZB-ZT N.W.: 1.5kg/bottle (2 material bins, each device, auto reloading) |
| Support material | 3D-ZB-ZC N.W.: 1.6kg/bottle (2 material bins, each device, auto reloading) |

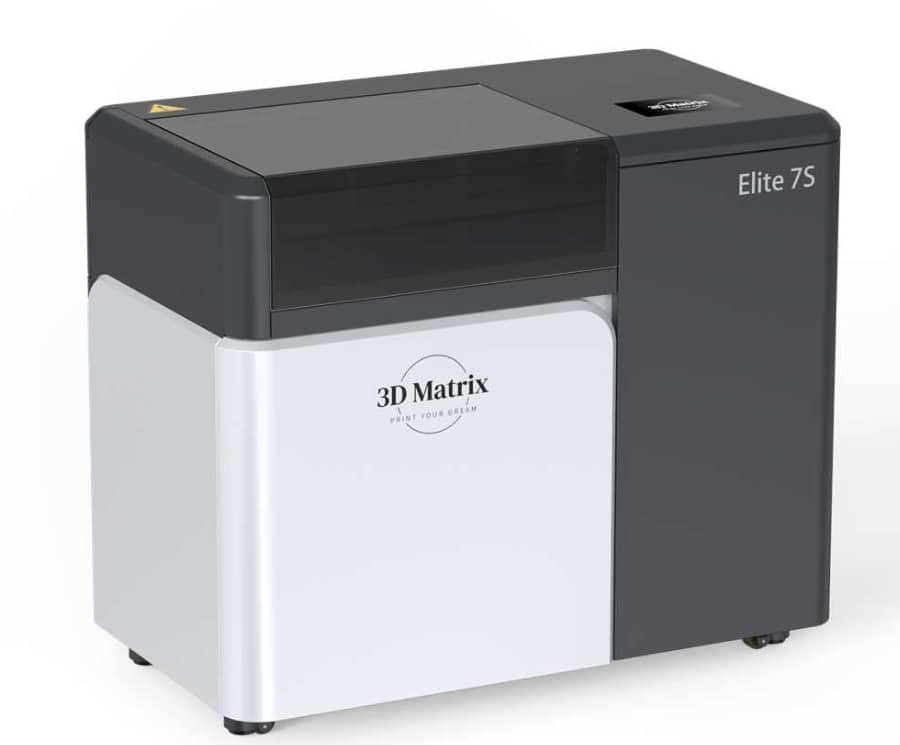

Advance 3D Matrix refers to a high-precision, industrial-grade wax material system used in specialized 3D printers for the jewelry and precision casting industries. Often sold as a comprehensive “system” (e.g., the Advance 3D Matrix 3D Printer), it is primarily designed to replace traditional manual mold-making with rapid, automated wax prototyping.
| Category | Indicator Name | Model Wax | Support Wax |
|---|---|---|---|
| Basic Properties | Material Name | JW300-GP | JW100-G |
| Color | Purple | White | |
| Net Weight | 1.17kg/bottle | 1,30kg/bottle | |
| Density (g/cm³) at 95°C (Equid) | 0.74 | 0.86 | |
| Melting point range (°C) | 65-75°C | 55-65°C | |
| Mechanical Properties | Volume shrinkage | 1.11% | / |
| Linear shrinkage | 0.70% | / | |
| Needle Puncture Hardness | 11 | / | |
| Printing Performance | Print layer thicknes (µm) | 16-32 µm | 16-32 µm |
| Support removal method | Not applicable | Solvent soluble or hot melt | |
| Ash content | >0.01% | / | |
| Compatibility | Compatible Printer Models | Elite series and other mainstream brands | Elite series and other mainstream brands |
| Safety and Environmental Protection | Biodegradability | None | Partially degradable |
| Storage Conditions | Optimum storage temperature (°C) | 0-25°C | 15-25°C |
| Shelf life (years) | 3 years | 3 years |
The Plempire PL3000 is an industrial-grade wax 3D printer engineered for high-volume, precision manufacturing. It utilizes MultiJet Printing (MJP) technology to create 100% real wax models that are directly castable, serving as a high-efficiency replacement for traditional jewelry mold-making.
| Specification | Details |
|---|---|
| Code | PL3000 |
| Building Size | 294 x 212 x 150 mm |
| Molding Range | 1200 x 1200 x 1600 dpi, (3200dpi 8µm/1600dpi 16µm/800dpi 32µm) |
| Resolution Ratio | ± 0.08 mm per 20 mm of part dimension XY Pixel 7.6mm The Z Axis Pixel STL, SLC, OBJ |
| Projector Resolution | 1310 x 770 x 1670 mm |
| Accuracy Rating | 220-240 VAC, 50/60 Hz, 15 A |
| Lift Height Gross weight | 630kg |
| Net weight | 480kg |
| Printing Speed | 220-240 VAC, 50 Hz, 10 A, Single C14 Socket |

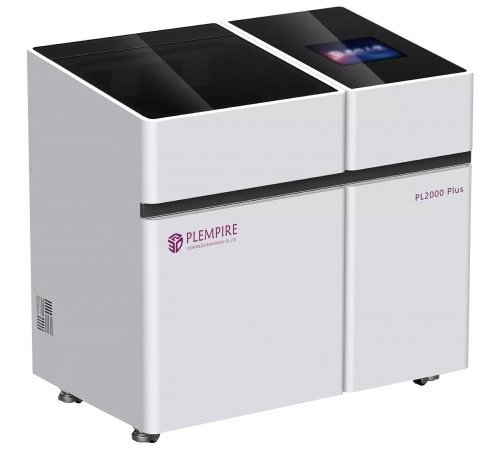

The Plempire PL2000 Plus is an industrial wax 3D printer designed for high-efficiency mass production in the jewelry and precision casting industries. It utilizes MultiJet Printing (MJP) technology to create ultra-fine, 100% castable wax models that serve as a direct replacement for traditional rubber mold-making.
| Specification | Details |
|---|---|
| Build volume | 294 x 212 x 150 mm |
| Printing Mode | XHD Printing Mode 1200 x 1200 x 1600 dpi, 16 µm layers |
| Accuracy | ± 0.1016 mm per 25.4 mm of part dimension |
| XHD Build speed in Z | Single Lane: 7.50 (mm/hr) Two Lanes: 3.50 (mm/hr) Three Lanes: 2.40 (mm/hr) |
| File format | STL, SLC, OBJ, AMF, MJPDDD |
| Material Package | 1.2kg bulid, 1.35kg support bottles: maximum machine capacity-2bulid & 2 support bottles |
| Machine size | 1272 x 780 x 1210 mm |
| Machine weight | Gross Weight: 420 KGS, Net Weight: 320 KGS |
| Current and voltage | 220-240 VAC, 50/60 Hz, 15 A |
| Input/Output | 220-240 VAC, 50 Hz, 10 A, Single C14 Socket |
| Warranty | 1 Year |

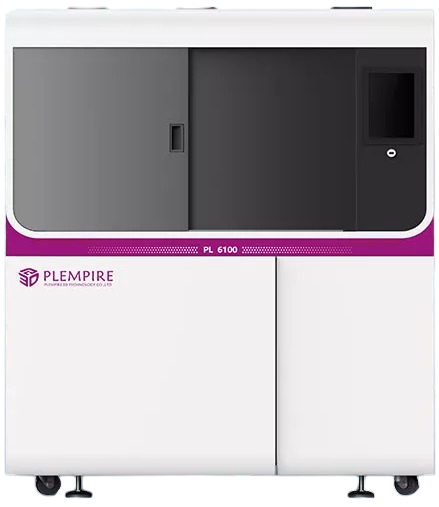

The Plempire PL6100 is an industrial-grade wax 3D printer specifically designed for high-end jewelry manufacturing and precision investment casting. It uses MultiJet Printing (MJP) technology to produce high-fidelity wax models that are ready for direct lost-wax casting.
| Specification | Details |
|---|---|
| Type | 3D |
| Building Size | 290 x 207 x 100 mm |
| Molding Range | 2900 x 2900 x 1700 dpi, Layer thickness: 15 µm. |
| Resolution Ratio | ± 0.04 mm per 20 mm of part dimension The Z Axis Pixel STL, SLC, OBJ |
| Projector Resolution | 1310 x 770 x 1670 mm |
| Accuracy Rating | 220-240 VAC, 50/60 Hz, 15 A |
| Lift Height Gross weight | 630kg, Net weight: 480kg |
| Printing Speed | 220-240 VAC, 50 Hz, 10 A, Single C14 Socket |
