Electrolytic Polishing Machine

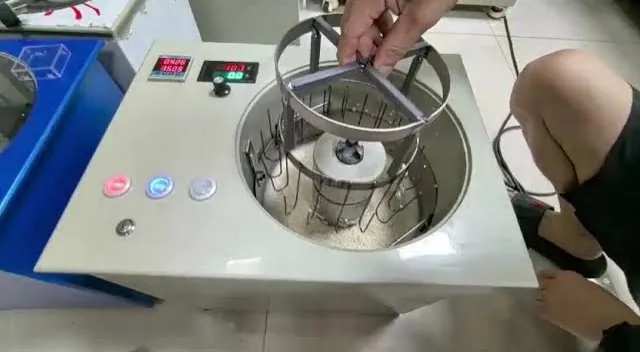

Electrolytic Polishing Machine (SPB-GRI, SPB-GRF3-1) Overview
- Batch Capacity138 pcs (GR1) / 20 × 3 pcs (GRF3-1)
- PowerAC 220 V / DC 0–15 V, up to 4.5 kW 300 A
- MetalsCopper, silver, K gold
- Three-in-OneGRF3-1 polishes 3 metals at once
The SPB-GR1 and SPB-GRF3-1 are electrolytic polishing machines for fast, uniform and cost-effective surface finishing of jewellery. Electrolytic grinding polishes complex shapes and dead corners that are difficult or impossible to reach by hand, at a fraction of the cost of manual grinding. The SPB-GR1 (large) handles 138 pieces per batch for big production, while the SPB-GRF3-1 (three-in-one) polishes three different metals at the same time, ideal for small workshops. Both work with copper, silver and K gold.
Key Features
- Polishes all dead corners, with high cost performance
- Electrolytic polishing costs far less per piece than manual grinding
- SPB-GR1 (large): for big production
- SPB-GRF3-1 (three-in-one): grinds 3 different metals at one time, ideal for small workshops
- For copper, silver and K gold (not pure gold or platinum)
Product Specifications
| Specification | SPB-GR1 (Large) | SPB-GRF3-1 (Three-in-One) |
|---|---|---|
| Voltage | AC 220V / DC 0–15V | AC 220V / DC 0–15V |
| Power | 4.5 kW, max 300 A | 1 kW, max 50 A |
| Machine Hook | 138 pcs | 20 × 3 pcs |
| Batch Production Capacity | Silver: 97.5 kg, Copper: 97.5 kg, K Gold: 75 kg | Silver: 52 kg, Copper: 52 kg, K Gold: 40 kg |
| Electrolyte Capacity | 75 L | 4 L |
| Metal Electrolyte Ratio | Copper: 25 L + electrolyte 50 L; Silver: 25 L water + electrolyte 50 L; K Gold: 75 L electrolyte (no water) | Copper: 1.3 L + electrolyte 2.6 L; Silver: 1.3 L water + electrolyte 2.6 L; K Gold: 4 L electrolyte (no water) |
| Abrasive Dosage | 25 kg | 1.5 kg |
| Size / Weight | 810 × 600 × 70 mm, 120 kg | 420 × 310 × 36 mm, 18 kg |
| Applicable Metal | Copper, silver, K gold (no pure gold, platinum) | Copper, silver, K gold (no pure gold, platinum) |
| Remark | For big production | Grinds 3 different metals at one time; very suitable for small workshops |
