Flashforge WaxJet 530 3D Printer Overview
- Build Volume289 × 208 × 150 mm (W × D × H)
- Layer Resolution2900 × 2900 × 1700 DPI; layer thickness 15 µm
- Dimensional Accuracy±0.04 mm per 20 mm
- Max Print Speed5.5 mm/h at 15 µm layer thickness
The Flashforge WaxJet 530 is a high-output, industrial 3D printer designed for professional jewelry manufacturing and high-precision industrial casting. It is a significant upgrade over the WaxJet 510, utilizing a triple-printhead system to deliver significantly higher production speeds while maintaining ultra-fine detail.

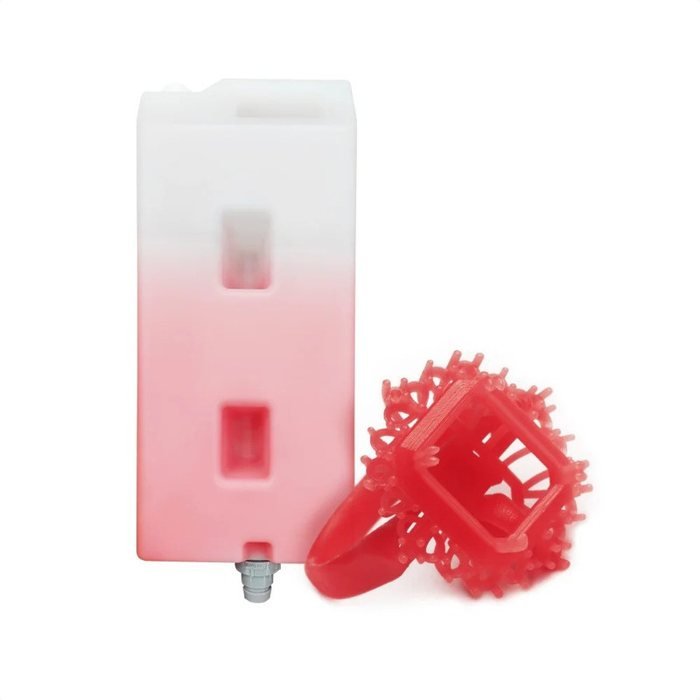

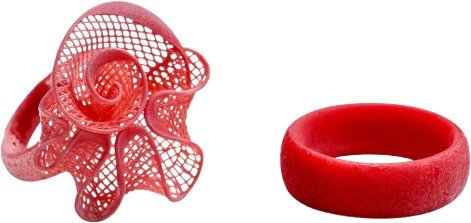

Sample Prints & Materials
Product Specifications
| Specification | Details |
|---|---|
| Printing Technology | MultiJet Printing (MJP) |
| Build Volume | 289 * 208 * 150 mm |
| Number of Printheads | 3 piezoelectric printheads |
| Dimensional Accuracy | 20mm ±0.04mm |
| Resolution | 2900 * 2900 * 1700 DPI, layer thickness: 15 µm |
| Material Utilization | Part wax utilization > 55% |
| Print Speed | 5.5 mm/h with layer thickness of 15 µm |
| Slicing Software | Wax Jetprint |
| Supported Input Formats | stl, slc |
| Connectivity | Network 10/100/1000 Ethernet/USB/Wi-Fi |
| Supported Operating System | Windows 7 / Windows 10 (64bit) |
| Operating Environment | Temperature 18-26 deg C, humidity : 30-70% |
| Equipment Dimensions | 1352 * 775 * 1600mm |
| Equipment Weight | 480 kg |
| Packaging Dimensions | 1530 * 900 * 1837mm |
| Packaging Weight | 630 kg |
Related Products
Flashforge WaxJet 530 3D Printer FAQs
The Flashforge WaxJet 530 is a high-output, industrial 3D printer designed for professional jewelry manufacturing and high-precision industrial casting. The Flashforge WaxJet 530 3D Printer is part of our Jewellery 3D Printer range.
Key specifications of the Flashforge WaxJet 530 3D Printer: Build Volume: 289 * 208 * 150 mm; Print Speed: 5.5 mm/h with layer thickness of 15 µm; Printing Technology: MultiJet Printing (MJP); Number of Printheads: 3 piezoelectric printheads; Dimensional Accuracy: 20mm ±0.04mm. The full specification table is shown above on this page.
The Flashforge WaxJet 530 3D Printer price depends on the configuration you choose and current rates. For an up-to-date quote, call or WhatsApp +91 9130528227, or send an enquiry using the form below, where the Flashforge WaxJet 530 3D Printer is already selected.
You can buy the Flashforge WaxJet 530 3D Printer directly from AS Technology. We supply customers across India from our Mumbai head office and branch offices in Delhi, Bengaluru, Hyderabad, Ahmedabad, Surat, Jaipur and Rajkot. Find your nearest office.
Depending on your production needs, you may also want to compare the ProJet MJP 2500W Printer, ZCZB-BS3(400) 3D Printer and Advance 3D Matrix. See the full Jewellery 3D Printer range to compare every model.
Still have questions? Call or WhatsApp +91 9130528227 or contact AS Technology.
