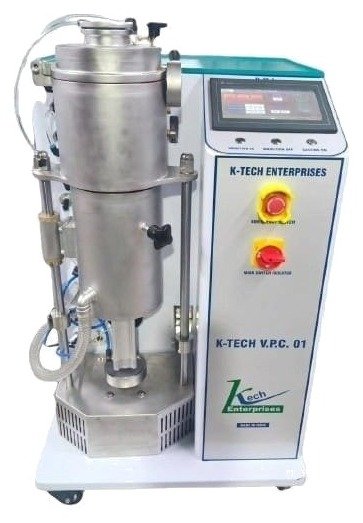

Pressure Casting Machine Overview
- Melting TemperatureUp to 1300 °C
- Crucible Capacity3 kg Au (PressCast 3J) / 5 kg Au (OUPT-017-660)
- Power11 kW, 6 kHz, 400 V 3 phase
- Vacuum PumpIncluded
Create flawless jewelry with AS Technology's Pressure Casting machines. These professional systems melt alloys up to 1300°C and use an integrated vacuum pump to ensure dense, porosity-free castings. Available in various crucible capacities, including 3 kg and 5 kg for gold, they are versatile and powerful tools for any jewelry manufacturer.
Product Specifications
| Specification | PressCast 3J | OUPT-017-660 |
|---|---|---|
| Power (max) | 11.0 kW | 11.0 kW |
| Frequency | 6 kHz | 6 kHz |
| AC Line | (50/60Hz), 3 Phase | 400 V ±10% |
| Melting Temperature (max) | 1300 °C | 1300 °C |
| Crucible Capacity | 3 kg Au | 5 kg Au |
| Crucible Volume | 208 cm3 | 430 cm3 |
| Flask Size mm (min), DxH | 87 x 127 | 80 x 127 |
| Flask Size mm (max), DxH | 120 x 300 | 120 x 300 |
| Vacuum Pump | Included | Included |
| Cooling Requirements water system quoted upon request | Water (External) | Water (External) |
| Cooling Water (min) | 5.8 Lpm (1.53 Gpm) | 5.8 Lpm (1.53 Gpm) |
| Inlet Water Temperature (max) | 35 °C | 35 °C |
| Weight Lb (kg) | 639.3 (290) | 937 (425) |
| Dimensions, Inch (mm) LxWxH | 27.6" x 39.8" x 53.1" (700 x 1010 x 1350) | 27.6" x 39.8" x 53.1" (700 x 1010 x 1350) |
Related Products
Pressure Casting Machine FAQs
Create flawless jewelry with AS Technology's Pressure Casting machines. These professional systems melt alloys up to 1300°C and use an integrated vacuum pump to ensure dense, porosity-free castings. The Pressure Casting Machine is part of our Jewellery Casting Machine range.
Key specifications of the Pressure Casting Machine: Power (max): 11.0 kW 11.0 kW; Frequency: 6 kHz 6 kHz; AC Line: (50/60Hz), 3 Phase 400 V ±10%; Melting Temperature (max): 1300 °C 1300 °C; Crucible Capacity: 3 kg Au 5 kg Au. The full specification table is shown above on this page.
The Pressure Casting Machine price depends on the configuration you choose and current rates. For an up-to-date quote, call or WhatsApp +91 9130528227, or send an enquiry using the form below, where the Pressure Casting Machine is already selected.
You can buy the Pressure Casting Machine directly from AS Technology. We supply customers across India from our Mumbai head office and branch offices in Delhi, Bengaluru, Hyderabad, Ahmedabad, Surat, Jaipur and Rajkot. Find your nearest office.

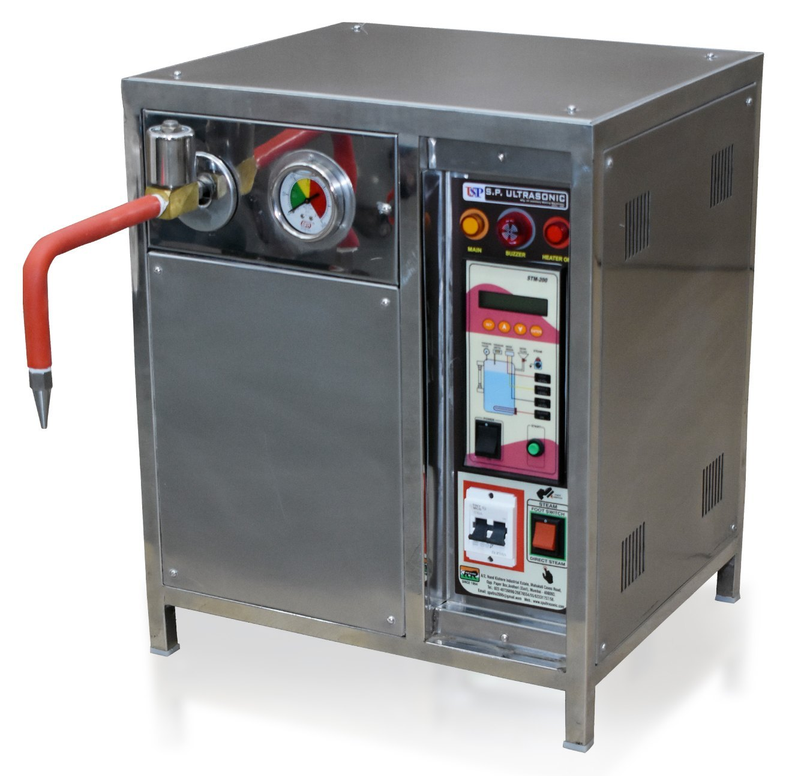

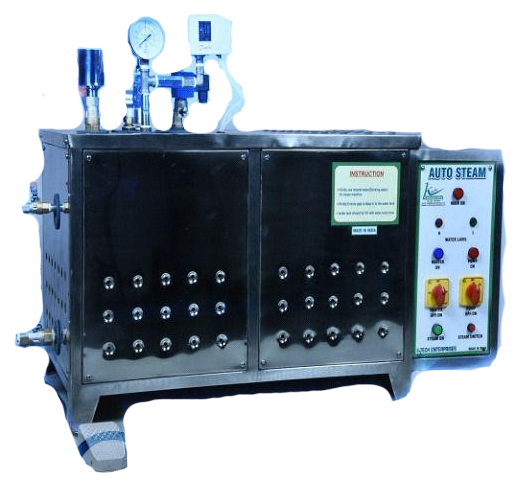

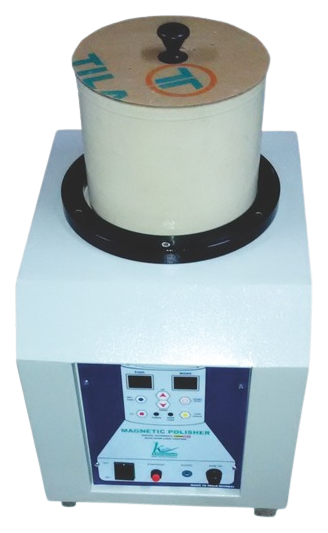

Depending on your production needs, you may also want to compare the Magnetic Polisher, Auto Steamer and Steamer. See the full Jewellery Casting Machine range to compare every model.
Still have questions? Call or WhatsApp +91 9130528227 or contact AS Technology.
